Choosing between a directional bridge and a spectrum analyzer is the first fork when you equip an RF, network, cable, or telecom test bench. A directional bridge is built for one kind of measurement: reflected RF energy along a signal path. A spectrum analyzer is built for another: sweeping a frequency range and showing the signals that are there. These two used, USA-made instruments sit on opposite sides of that fork, so the right pick depends on the test job.
Quick verdict
For reflected-signal checks on cable and telecom paths, the HP 85020A Directional Bridge at USD 500.00 is the lower-priced, more specialized tool. For scanning a wide low-frequency band and watching real signal behavior, the Tektronix 2712 Spectrum Analyzer at USD 599.49 is the fuller instrument.
At a glance
| Product | Listed Price | Instrument Type | Key Detail |
|---|---|---|---|
| HP 85020A Directional Bridge (10MHz-4.3GHz) | USD 500.00 | Directional bridge | Includes attached cable and carry/storage case; case foam has deteriorated |
| Tektronix 2712 Spectrum Analyzer (9kHz-1.8GHz) | USD 599.49 | Spectrum analyzer | CRT display, GPIB interface, and manual included |
Where each product wins
- HP 85020A wins when you need a directional bridge for RF, signal, and microwave measurements and you want the lower listed price on a specialized component.
- Tektronix 2712 wins when you need to see and compare signals across a wide low-frequency span and operate the analyzer through its front-panel controls or IEEE-488 interface.
Product notes

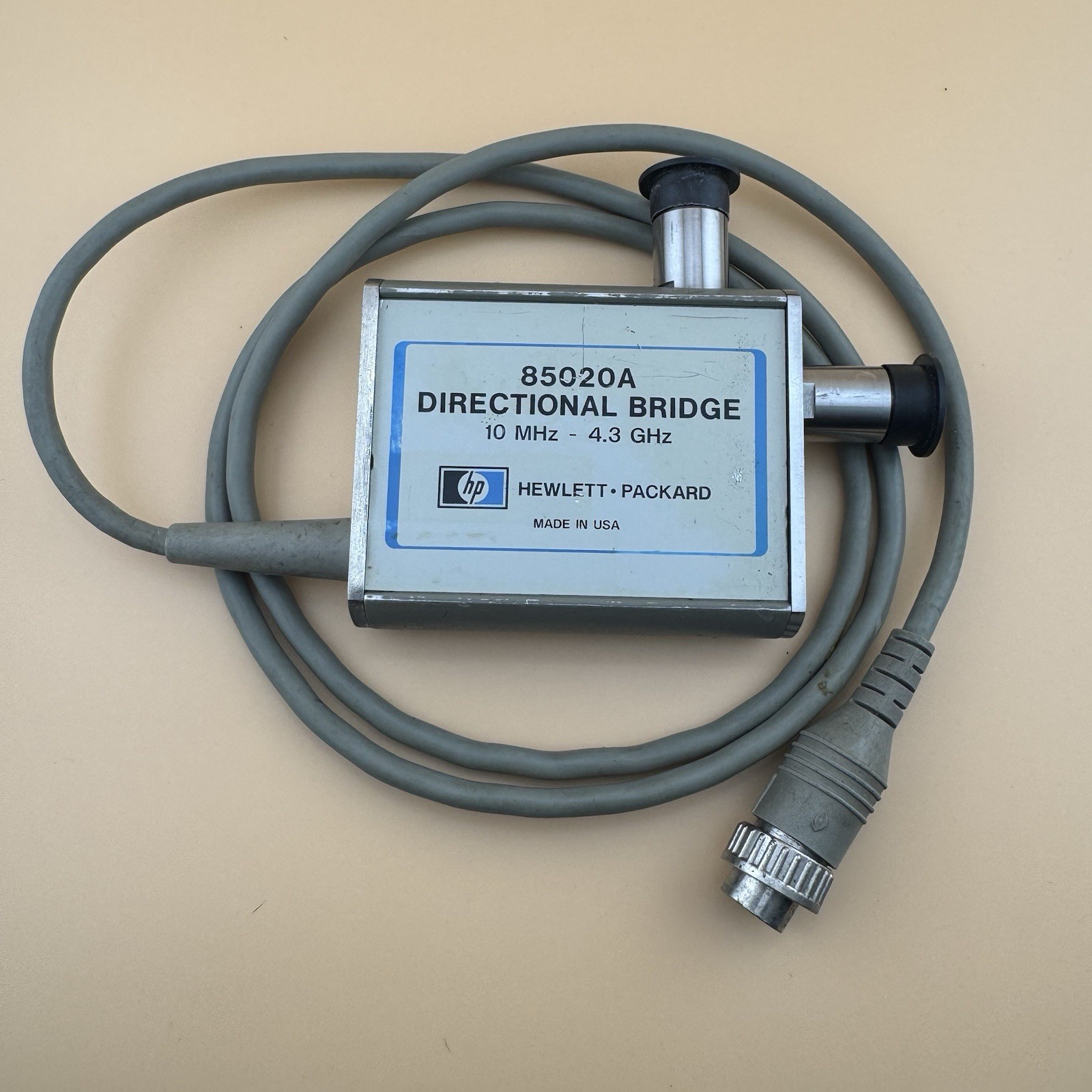

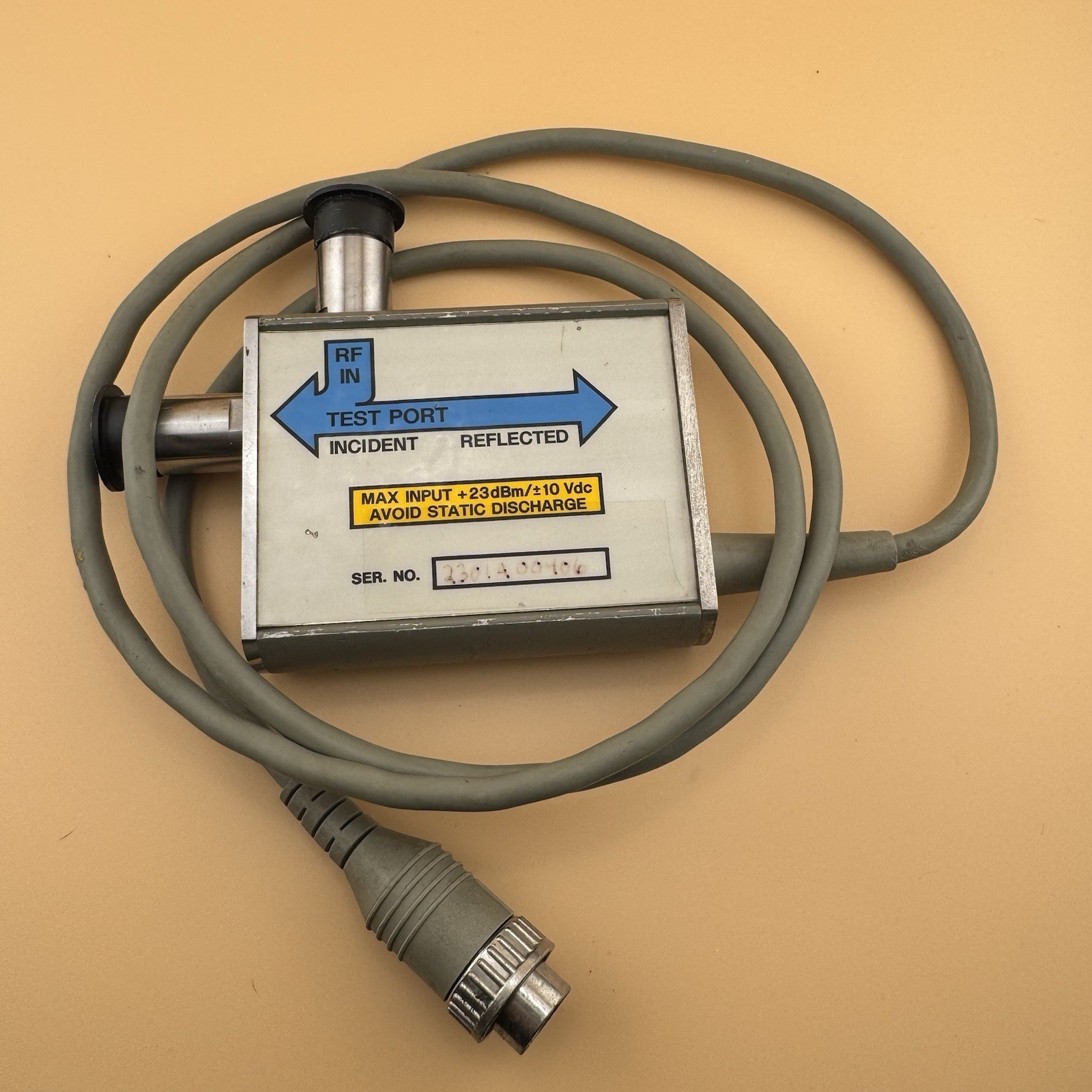

HP 85020A Directional Bridge (10MHz-4.3GHz)
The 85020A is a directional bridge for RF measurements, signal testing, and microwave applications. The package includes the bridge unit, an attached cable, and a carry/storage case; the case foam has deteriorated with age and may need cleaning or replacement. The reason to choose it is straightforward: it is the less expensive of the two, and it is built for a specific reflected-signal task rather than general signal observation. The limitation is equally clear-this is a component for a measurement chain, not a standalone display instrument. Sold as-is and used, it belongs on a bench that already has the surrounding source and receiver equipment to make use of the bridge's directional reading.
Tektronix 2712 Spectrum Analyzer (9kHz-1.8GHz)
The Tektronix 2712 is a used spectrum analyzer with a 50Ω RF input and a CRT display. It brings a numeric keypad, frequency and span controls, resolution bandwidth and sweep controls, a tracking generator output, and an IEEE-488 GPIB interface, and it includes the manual. Its strength is that it shows you the RF environment instead of asking you to assemble a separate display chain-you can scan a cable or telecom band and inspect signals up to 1.8 GHz. The limitation is frequency range: 1.8 GHz is the top end, so microwave work beyond that is outside its reach. That makes it the better choice for lower-frequency RF and telecom troubleshooting, not for high-frequency microwave testing.
Final choice by use case
- Reflected-signal and microwave-path checks: the HP 85020A directional bridge fits when you want the more focused, lower-priced tool.
- Signal observation and band scanning: the Tektronix 2712 spectrum analyzer fits when you want the fuller low-frequency view plus a tracking generator in one unit.
