Quick verdict
When you need reliable length measurements in dimensional metrology machine inspection, the choice between a shorter and a longer digital caliper comes down to part size and data needs. Both are new, stainless-steel Absolute Digimatic models that hold their zero, so you won't be re-zeroing after every measurement. The 500-196-30 is the value pick for everyday small-part work; the 500-193-30 is the capable pick for long parts and data capture. If you mostly work on components that fit in the palm of your hand, the 500-196-30 saves you money and feels more nimble. If you're routinely reaching across larger parts, the 500-193-30's extra travel is worth the jump in cost.
At a glance
| Feature | 500-196-30 (0-6") | 500-193-30 (12") |
|---|---|---|
| Price | USD 46.72 | USD 89.10 |
| Measuring range | 0 to 6 in (150 mm) | 0 to 12 in (300 mm) |
| Minimum measurement | 0 in | 0 in |
| Data output | None | SPC data-transfer port |
| Accuracy | ±0.001" | ±0.001" |
Where each product wins
The 500-196-30 wins when cost and portability come first. It's lighter, more compact, and less expensive, so it's easy to grab for quick measurements. The 500-193-30 wins when you need extra reach and the ability to send measurement data to a recorder or PC for documentation. If you never log caliper data, that output port won't matter; if you do, it's a real advantage. For most inspection work, the longer model is the one that prevents a second setup when a part is just a bit too long.
Product notes

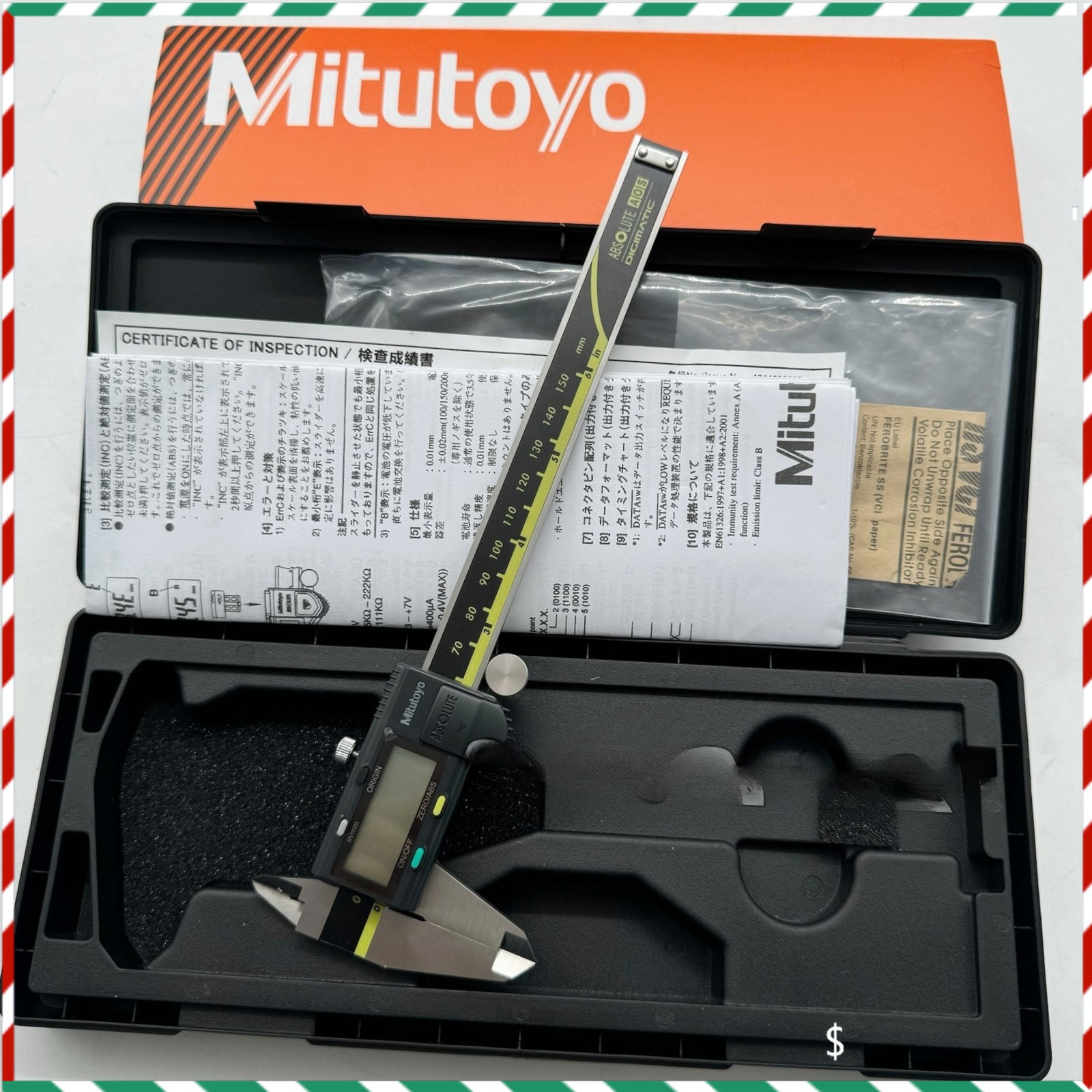

Mitutoyo 500-196-30 0-6" 150mm Absolute Digimatic Vernier Caliper Japan
This 6-inch caliper is the lighter, lower-cost entry into Absolute Digimatic measuring. At $46.72, it gives you a 0.0005" resolution and ±0.001" accuracy in a hardened stainless-steel body, and it handles outside, inside, depth, and step measurements. It's a genuine all-rounder for small-part inspection. The trade-off is no data-output port, so if you need to log measurements digitally for quality records, you'll be typing numbers by hand. The 6-inch reach also means you can't span parts longer than 150 mm. If your daily work stays within that limit, this is the practical choice.

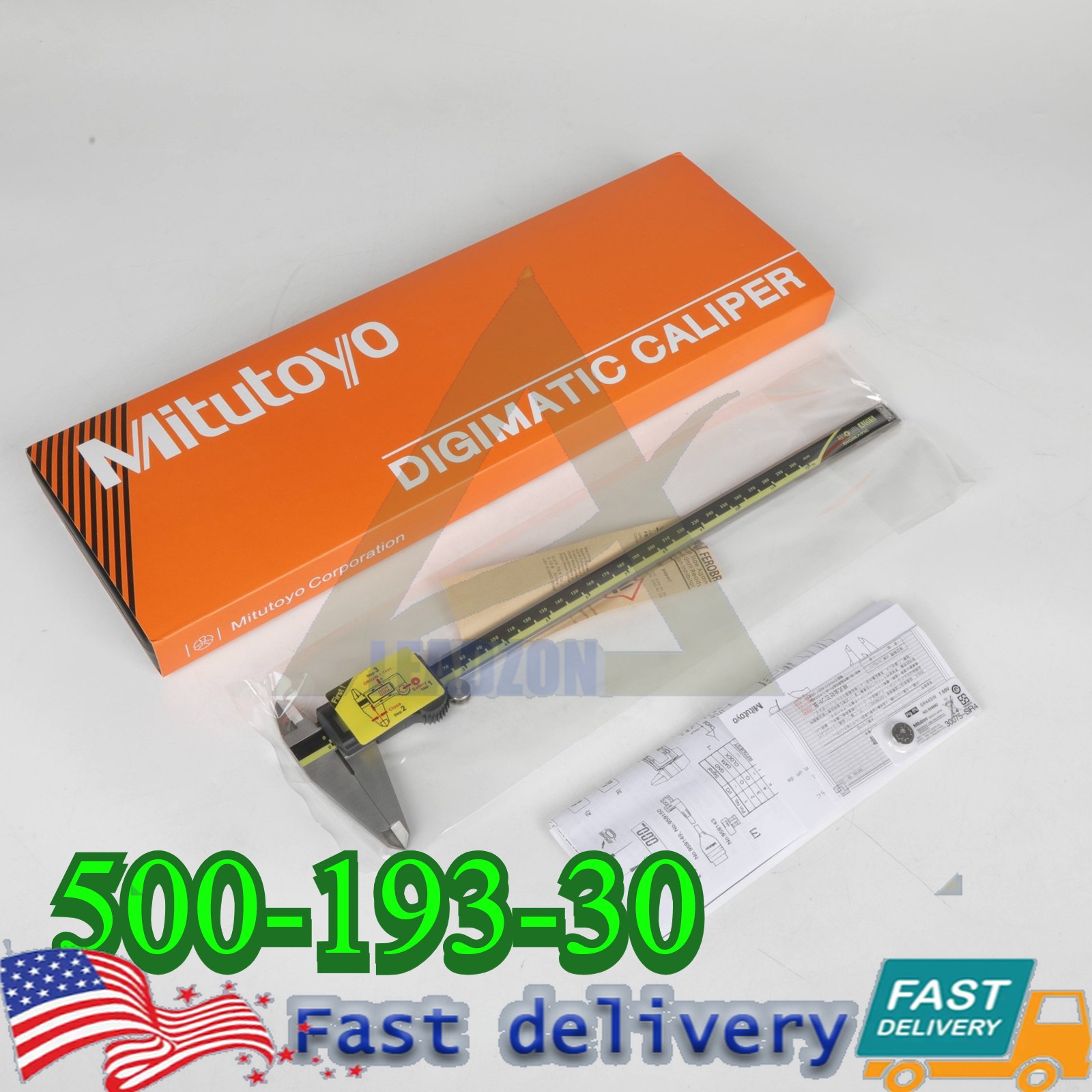

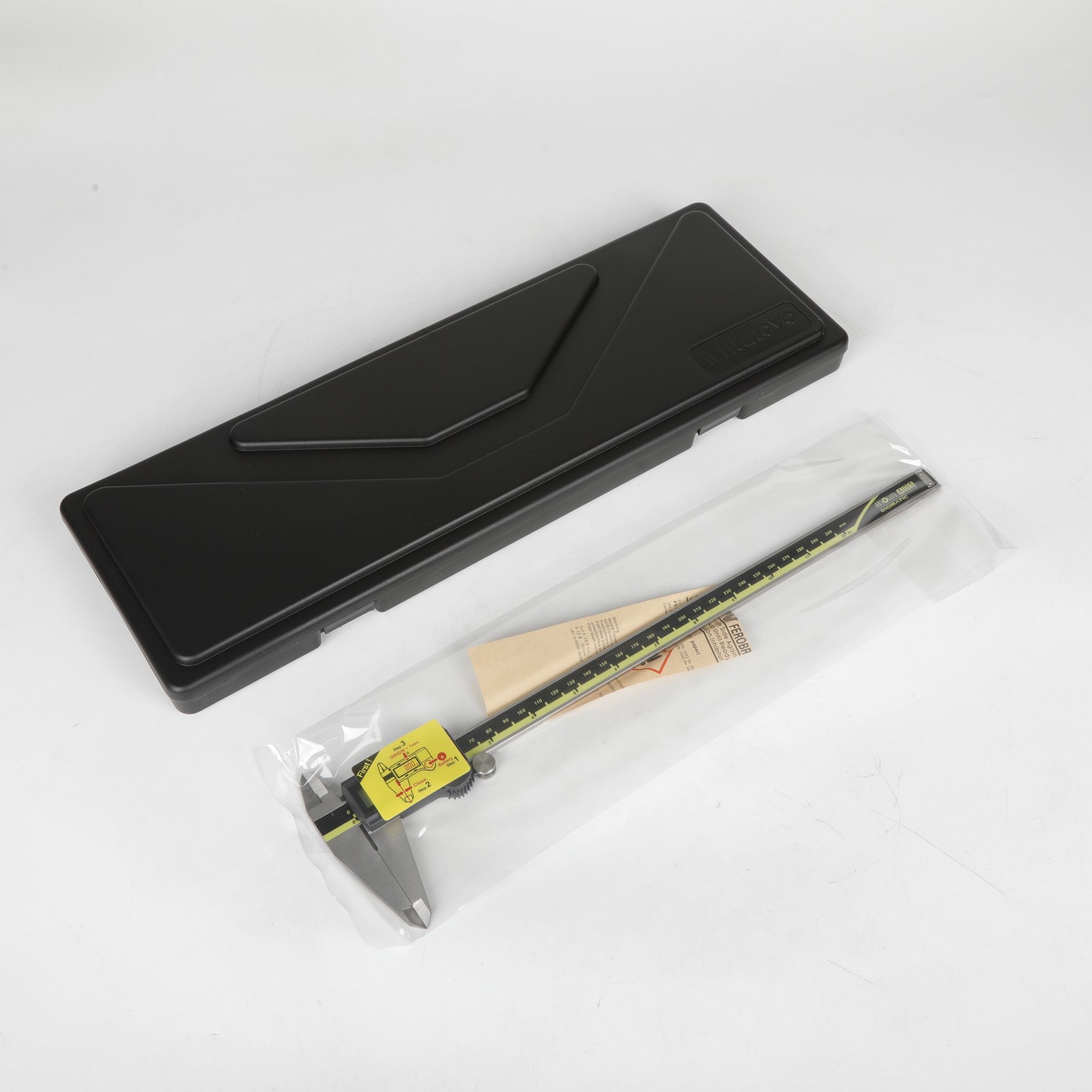

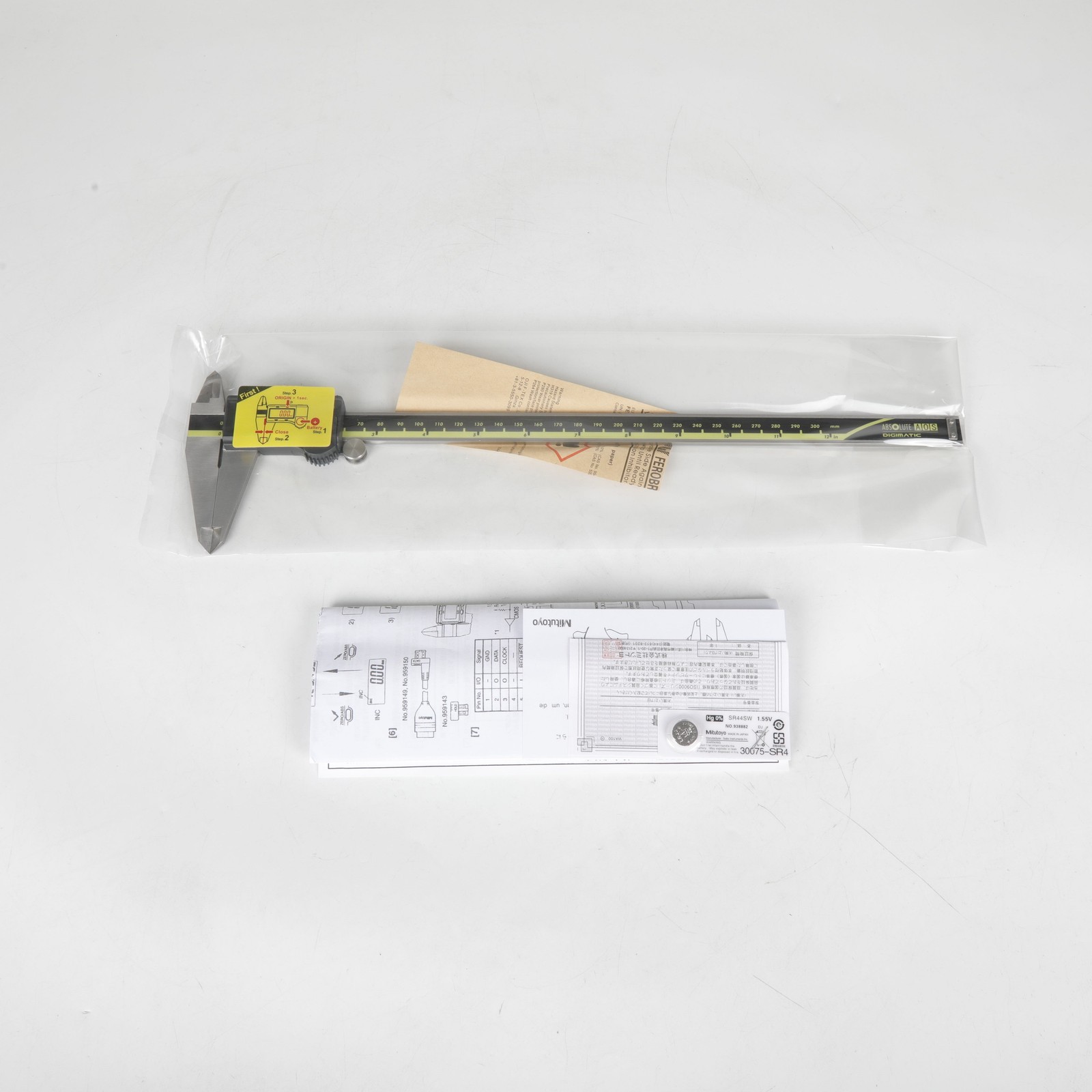

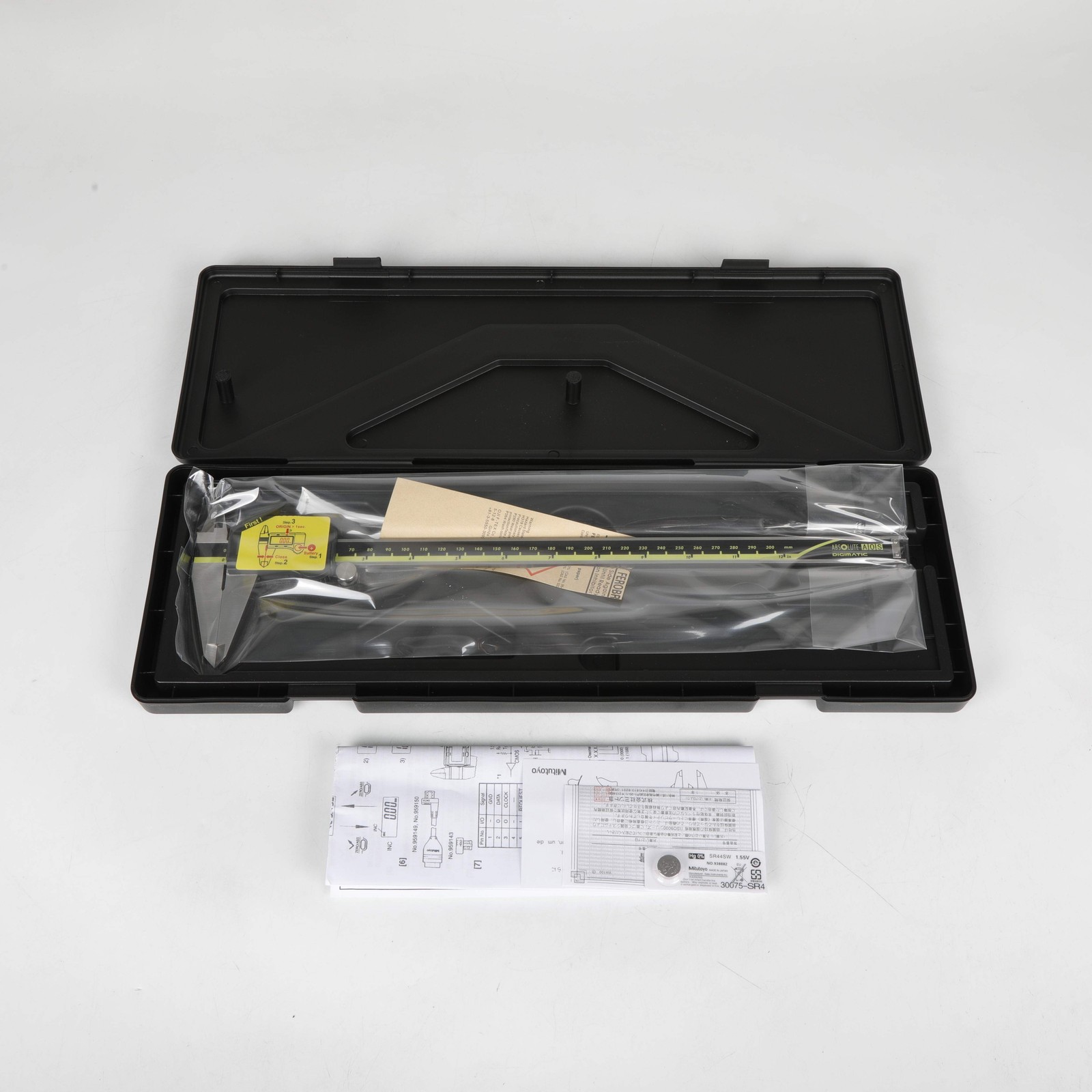

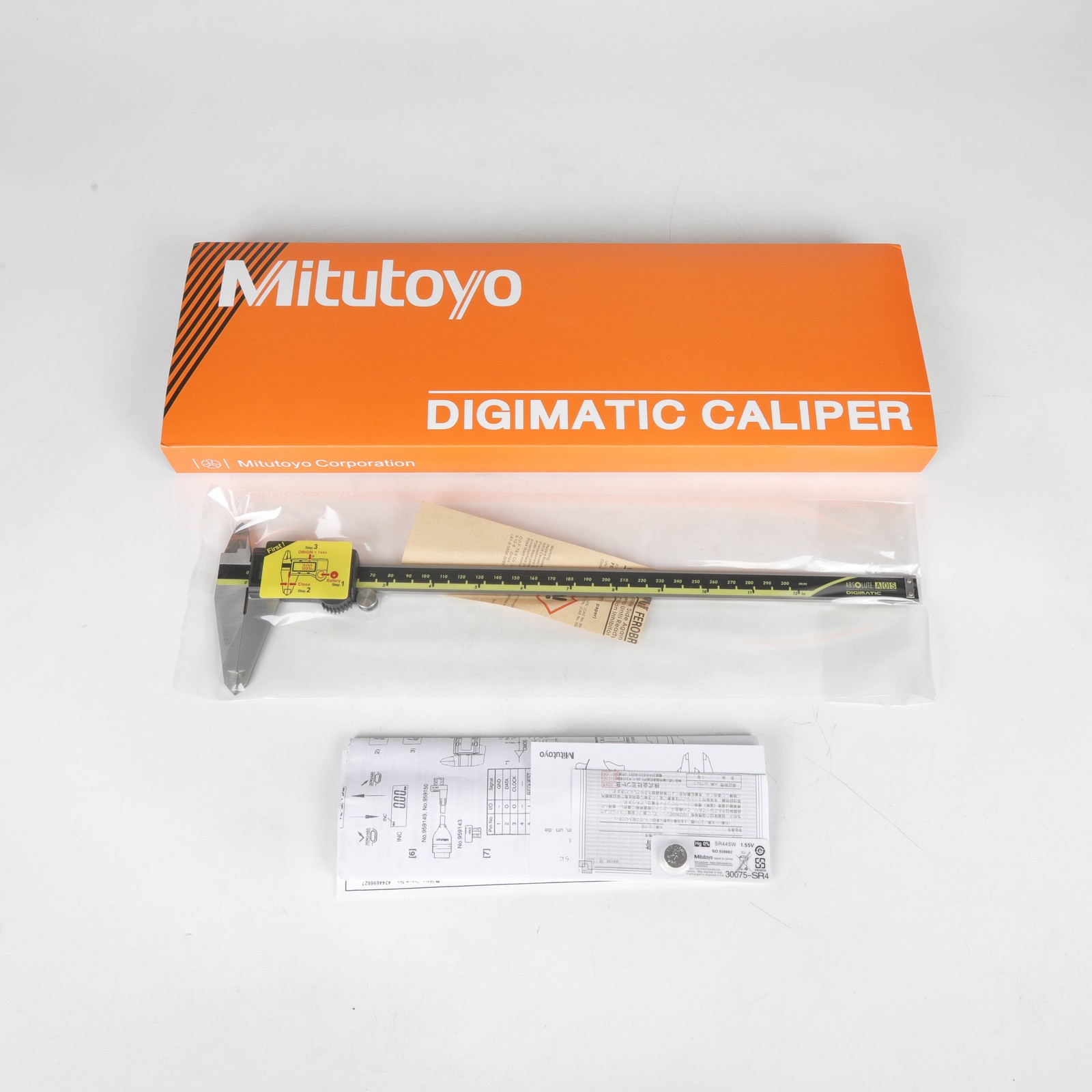

500-193-30 New Mitutoyo 300mm/12" Absolute Digital Digimatic Vernier Caliper
This 12-inch model brings the same Absolute Digimatic idea to a much longer beam. At $89.10, it costs more, but you get 300 mm of measuring travel and a data-output port that supports SPC transfer. The display converts between metric and inch units, and the slide moves smoothly for repeatable positioning. It's built for inspectors who need to document measurements rather than just eyeball a number. Just know that the longer frame is heftier and less nimble in confined spaces, so it's not ideal for delicate, tight-quarter setups. Choose it when range and data capture matter more than a compact feel.
Final choice by use case
For quick small-part inspection without a data connection, the 500-196-30 is the easy choice. For long parts and quality documentation, the 500-193-30 earns its higher cost. If you're not sure which one you need, buy the shorter model first-it covers the majority of shop work. If you find yourself wishing for a couple more inches of reach, the longer model is the worthwhile upgrade.
