Choosing a Digital Caliper for Dimensional Metrology Machine Inspection
When you need to measure machine parts for dimensional inspection, the first question is not which brand to buy, but how large a range you really use. A digital caliper has to fit the workpiece and give you a repeatable reading. These four Mitutoyo Absolute Digimatic digital caliper listings cover 6-inch, 8-inch, and 12-inch maximum measurements, so the main decision is range versus price.
Quick Take
If you need the longest range, the 12-inch Mitutoyo 500-193-30 stands apart. If you want a compact caliper for smaller parts, the 6-inch 500-196-30 appears in two listings. The 8-inch 500-197-30 sits between them. All four listings are for new digital calipers.
Listed Price Comparison
| Product | Listed Price | Price Bar | Measuring Range |
|---|---|---|---|
| Mitutoyo 500-193-30 | USD 80.00 | 12 in | |
| Mitutoyo 500-196-30 | USD 45.00 | 6 in | |
| Mitutoyo 500-197-30 | USD 55.80 | 8 in | |
| Mitutoyo 500-196-30 | USD 48.36 | 6 in |
Decision Matrix
| If you need... | Use this listing |
|---|---|
| Maximum reach for larger parts | Mitutoyo 500-193-30 |
| A compact 6-inch option with the lowest listed price | Mitutoyo 500-196-30 (lower-priced listing) |
| A middle range between 6 and 12 inches | Mitutoyo 500-197-30 |
| A 6-inch option at a different listed price | Mitutoyo 500-196-30 (other listing) |
Product Notes
Japan Mitutoyo 500-193-30 300mm/12\" Digital Digimatic Vernier Caliper US 100
This 12-inch listing is the highest-priced option at USD 80.00, but it is also the only one with a maximum measurement above 8 inches. It includes IP54-rated protection and SPC output, which makes it useful for inspection workflows where you want to collect readings digitally. It uses hardened stainless steel and has a large LCD display. The trade-off is that you are paying for the extra measuring range and the output capability. If your work involves parts that are too large for an 8-inch caliper, this listing gives you the room to measure them.

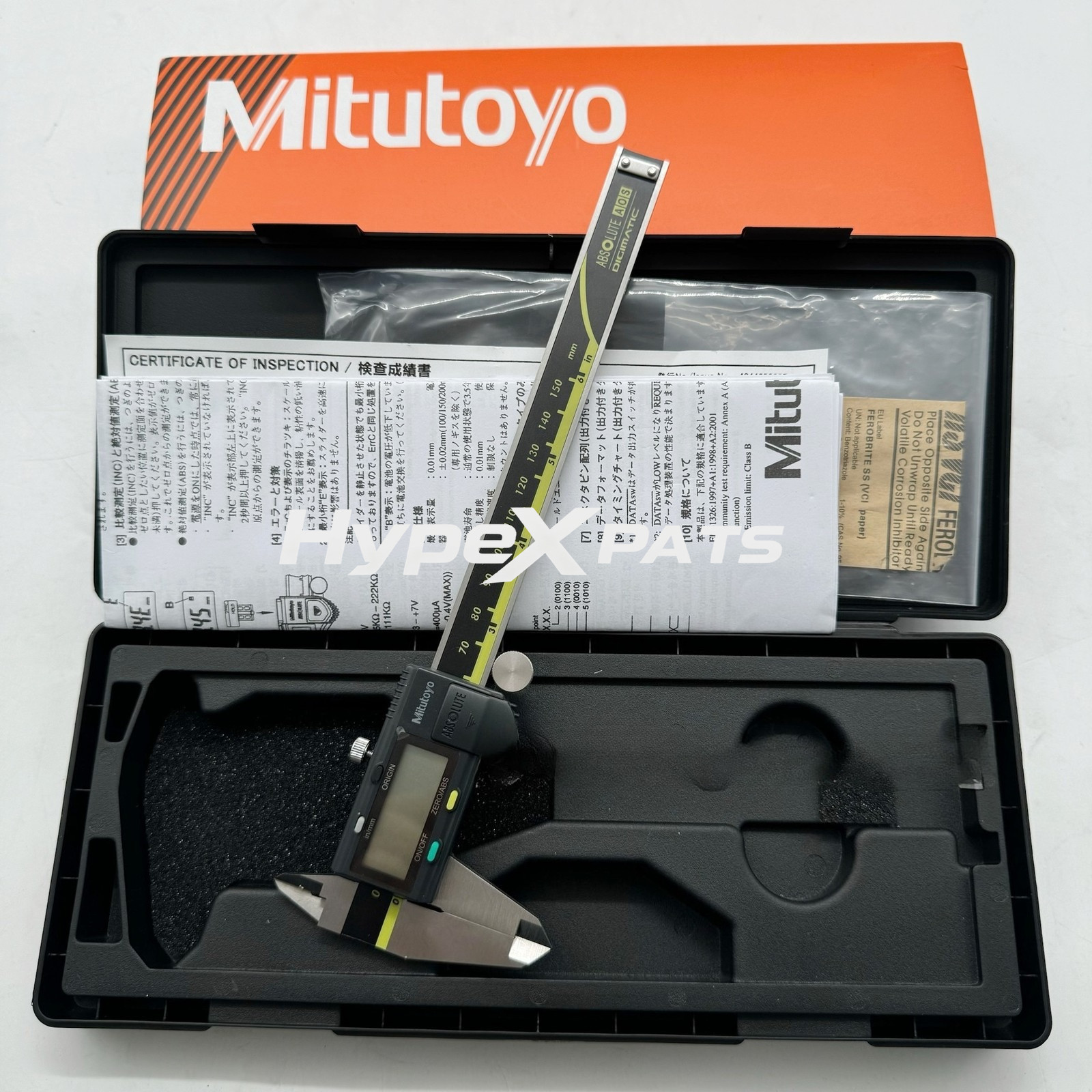

Mitutoyo 500-196-30 150mm/6\" Absolute Digital Digimatic Vernier Caliper Japan
This 6-inch listing is the lowest-priced option in the comparison at USD 45.00. It shares the same model number and 0 to 6-inch range with the other 500-196-30 listing. It measures outside, inside, depth, and step, with a resolution of 0.0005 in. Its specifications list SPC output as none, so it is best treated as a manual-reading caliper rather than a data-output tool. For a compact 6-inch caliper at the lowest listed price, this is the direct pick.
Mitutoyo Japan 500-197-30 0-200mm/8\" Absolute Digital Digimatic Vernier Caliper
The 8-inch listing at USD 55.80 fills the middle slot between the 6-inch and 12-inch options. It measures up to 200mm/8 inches, which gives you a little more capacity than the compact 6-inch models without moving up to the 12-inch size. It includes a digital display, a storage case, and the original box. The main limitation is that the 8-inch range still will not cover parts that exceed 200mm, so for larger workpieces you would need the 12-inch model. For work that fits within 8 inches, this is a balanced option.
150mm/0-6 Absolute Digital Digimatic Vernier Caliper Mitutoyo Japan 500-196-30
This is the second listing for the same 6-inch model, at USD 48.36. It has the same 0 to 6-inch range and 0.0005 in resolution as the other 500-196-30. It handles outside, inside, depth, and step measurements, and it also includes dual-unit conversion between metric and imperial. The difference from the other 6-inch listing is the listed price: USD 48.36 versus USD 45.00. If you are deciding between the two, the lower-priced one is the more direct buy; if you are set on this listing, you are still getting the same 6-inch capacity.
Final Recommendation by Use Case
- For large-part inspection and digital data output, choose the 12-inch Mitutoyo 500-193-30.
- For a compact 6-inch caliper at the lowest listed price, choose the lower-priced Mitutoyo 500-196-30.
- For an 8-inch middle-range caliper, choose the Mitutoyo 500-197-30.
- If you prefer the other 6-inch listing, the second Mitutoyo 500-196-30 gives you the same measuring range at a higher listed price.
