In dimensional metrology machine inspection, the part you choose depends entirely on what is failing. When your Mitutoyo BHN506 coordinate measuring machine needs attention, the choice usually comes down to two very different components: a calibration master ball and an air-pressure safety switch. Both are made by Mitutoyo and designed for the same CMM family, but they solve completely different problems. Pick the wrong one and you will still have a machine that is either measuring inaccurately or shutting down unexpectedly. This head-to-head guide helps you match the correct part to the symptom, with prices and functions laid out side by side.
Quick Verdict
If your BHN506 is producing inconsistent probe measurements or you are setting up a new probing system, the Mitutoyo 06AAC557 Master Ball is the reference standard you need. It is a high-precision qualification sphere used for probe tip alignment and error compensation. If the machine's air-pressure safety system is triggering fault alarms or the pneumatic counterbalance seems unstable, the Mitutoyo BHN506 Pressure Switch is the component to replace. The master ball lists at USD 1,299.00, while the pressure switch lists at USD 399.00, a significant price gap that reflects their very different roles.
Comparison Table
| Product | Price | Price Bar | Role |
|---|---|---|---|
| Mitutoyo 06AAC557 Master Ball | USD 1,299.00 | Calibration reference sphere for probe qualification and error compensation | |
| Mitutoyo BHN506 Pressure Switch | USD 399.00 | Adjustable air-pressure safety switch for pneumatic interlock and fault signal |
Where Each Product Wins
The master ball wins when your priority is measurement accuracy. Its job is to act as a known spherical reference so the CMM's probe tip can be qualified and the machine can compensate for alignment errors. The pressure switch wins when your priority is machine protection. It monitors the air supply to sensitive air bearings and counterbalance components, and it sends an interlock or fault signal when pressure drops. These are not interchangeable parts, so the winner is simply the one that matches the symptom you are seeing.

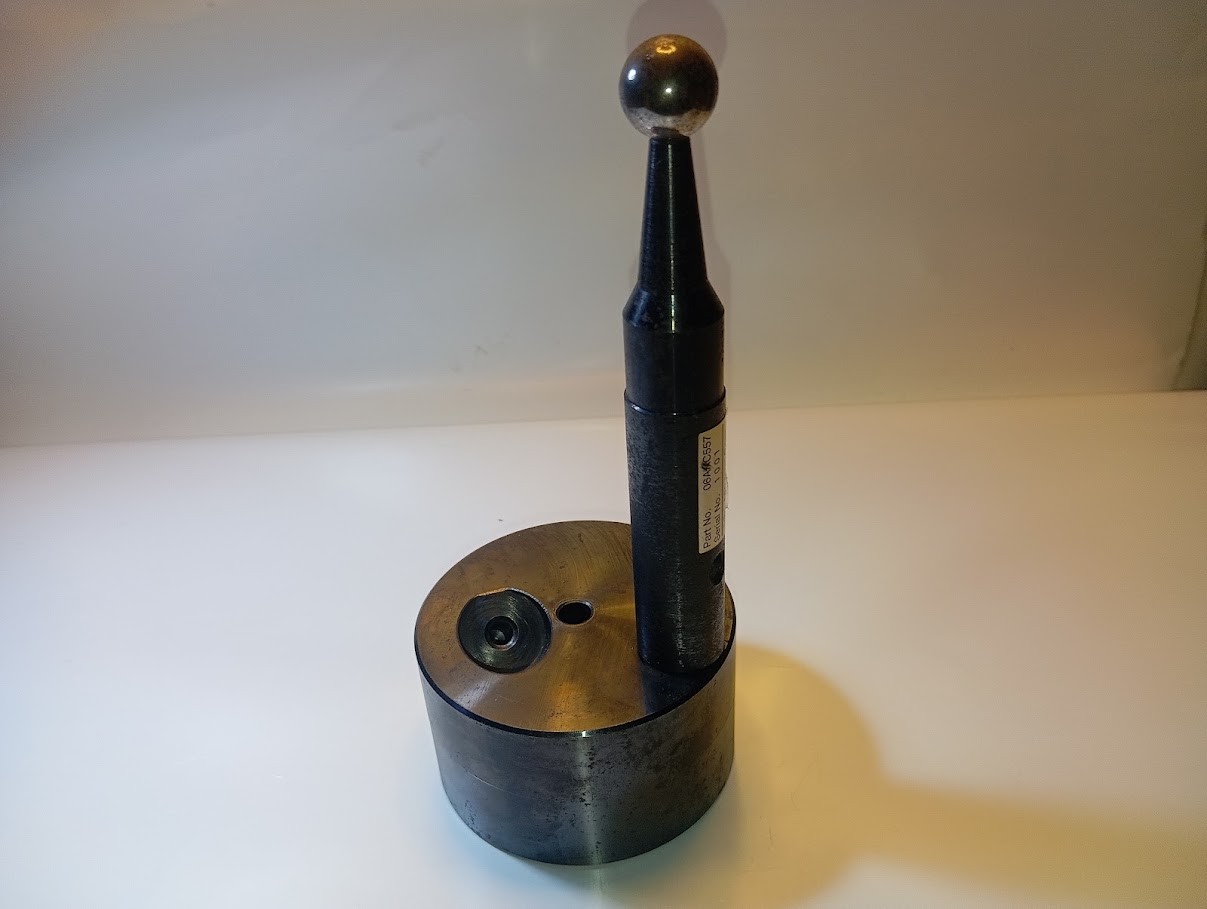

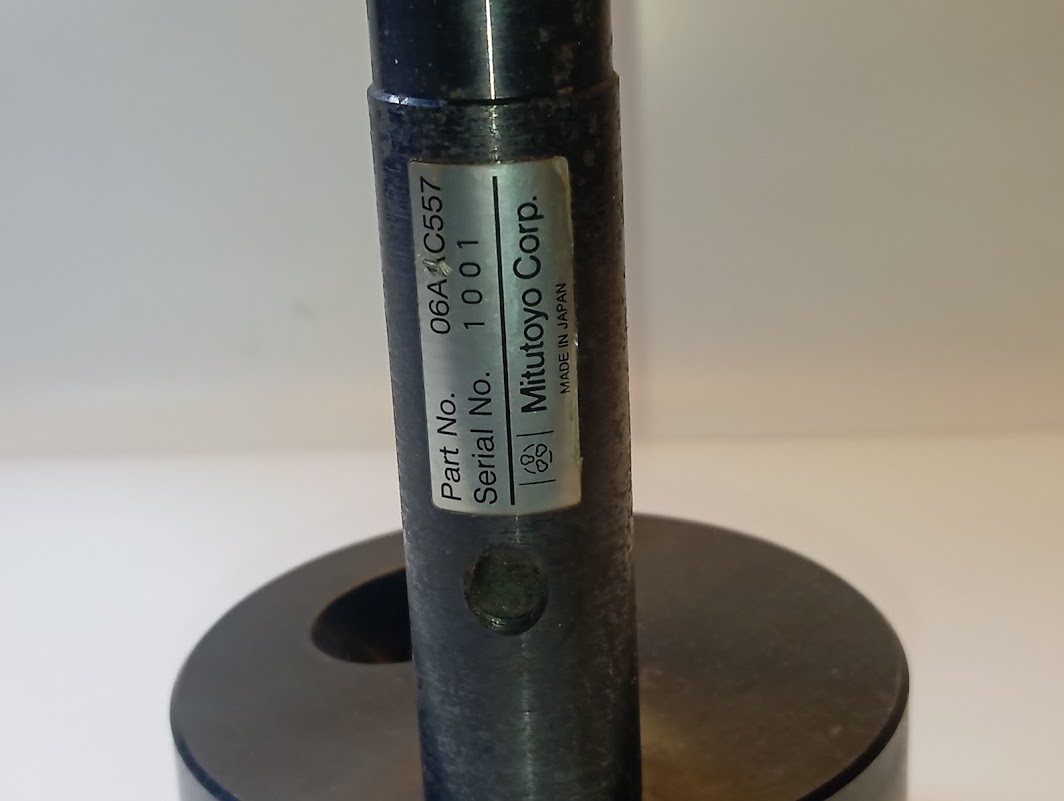

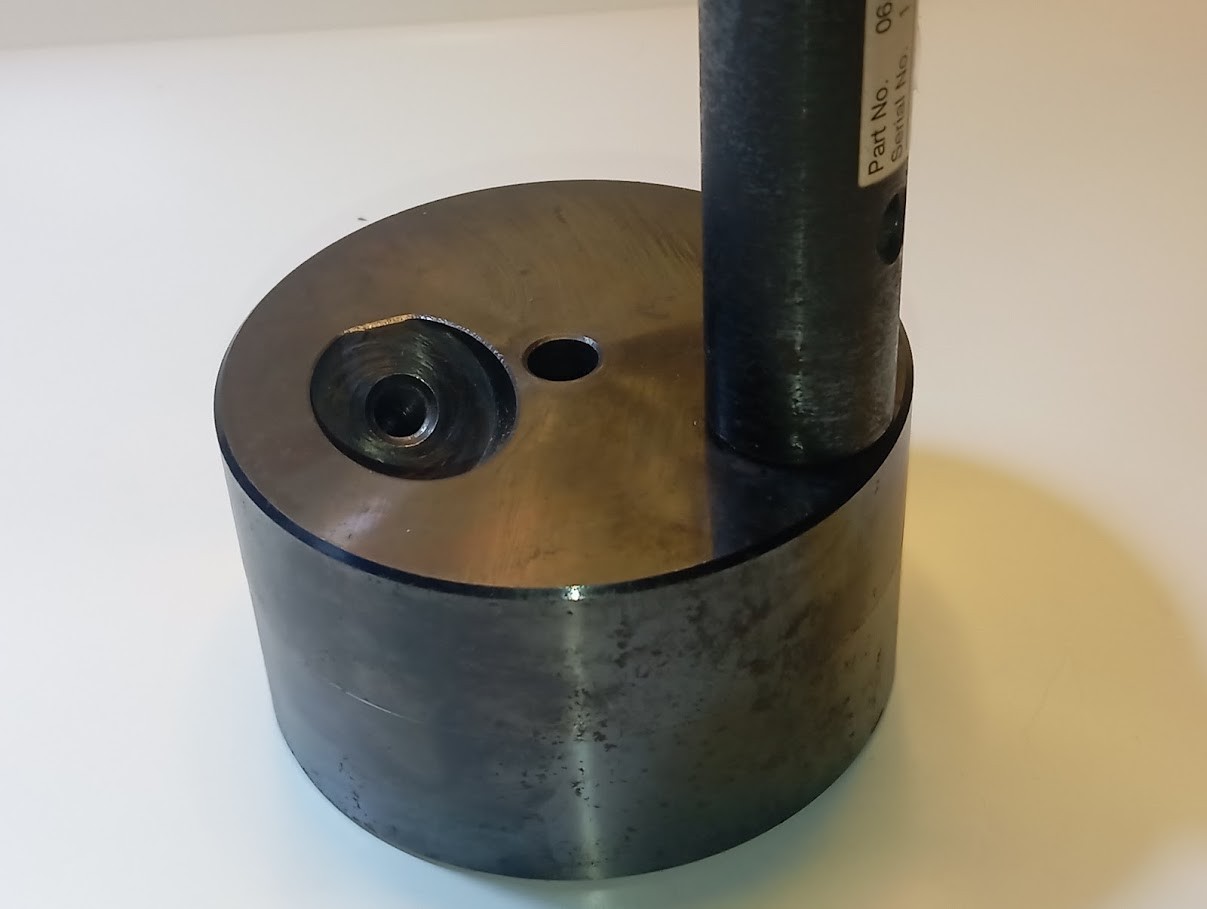

Mitutoyo 06AAC557 Master Ball
Choose the master ball when your BHN506 needs a trustworthy calibration reference. Built with high sphericity and wear-resistant materials, this qualification sphere gives the probing system a stable geometric target for tip qualification and error compensation. It is the part that helps keep your measurement results reliable and repeatable during demanding inspection cycles. The trade-off is that it does nothing for pneumatic or safety-related faults. If your machine is throwing an air-pressure alarm, the master ball will not resolve it. This is also the more expensive part in this comparison, so you want to be confident that calibration, not air supply, is the real issue before committing to it. For a metrology-focused repair, it is the correct component.
Mitutoyo BHN506 Pressure Switch
If your CMM is reacting to low air pressure, the pressure switch is the part you need. It is an adjustable Sanwa Denki SPS-8T switch designed to monitor the air supply that feeds ultra-sensitive air bearings and pneumatic counterbalance components. If pressure falls below the optimal threshold, the switch triggers a system interlock or fault signal to protect the guideways and axis mechanism from damage. The limitation is that it has no role in probe qualification or measurement accuracy. Installing this switch will not fix drifting probe readings or calibration errors; it only addresses the pneumatic safety circuit. Because it is the less expensive part in this comparison, it is also a natural first step when you are troubleshooting an air-pressure-related fault rather than a measurement problem.
Final Choice by Use Case
If you are seeing measurement drift, probe qualification failures, or inconsistent results, the Mitutoyo 06AAC557 Master Ball is the part to order. If you are seeing low-pressure alarms, unexpected machine stops, or pneumatic counterbalance issues, the Mitutoyo BHN506 Pressure Switch is the part to order. For shops that maintain multiple BHN506 systems, having both on hand makes sense, but the right purchase today depends on the symptom your machine is showing.
