Calibration standards are not a one-size-fits-all purchase. Whether you need to verify a bench multimeter, run a quick conductivity check on a part, or test revenue-class kWh meters in the field, the right standard has to match the instrument you are checking and the environment where you are checking it. These four options show the practical spread across a wide listed price range, with each unit aimed at a different calibration job.
Quick Take
- AD584 Resistance Standard Calibration Test Equipment: new reference board from China for AD584 multimeter checks, with uses in measuring-instrument calibration, teaching experiments, and automatic test systems.
- Frequency Devices TEC-1 Calibration Checker: new, USA-made multi-output checker for DC/AC volts, DC/AC current, frequency, resistance, and capacitance.
- Olympus Conductivity Standard Calibration: used three-standard set for material analysis, manufacturing QC, and R&D.
- Radian Research RD-20-202 Dytronic Portable Watthour Standard: used, USA-made portable single-phase reference for utility kWh meter testing, rated to 0.04% maximum error.
Listed Price Comparison
| Calibration Equipment Standard | Listed Price | Listed Price Indicator | Coverage |
|---|---|---|---|
| AD584 Resistance Standard | USD 12.98 | Compact PCB reference board for AD584 multimeter calibration, electronic production, teaching experiments, and automatic test systems | |
| Frequency Devices TEC-1 Calibration Checker | USD 99.95 | DC/AC voltage, DC/AC current, frequency, resistance, and capacitance outputs for bench checks | |
| Olympus Conductivity Standard Calibration | USD 332.00 | Three conductivity standards: 30.45, 39.65, and 59.06 %IACS/EW | |
| Radian RD-20-202 Dytronic Portable Watthour Standard | USD 699.99 | Portable single-phase watthour reference for utility kWh meter testing, up to 66.7 A |
Decision Matrix
- For AD584 multimeter bench work: AD584 Resistance Standard Calibration Test Equipment.
- For one unit that checks several instrument types in the shop: Frequency Devices TEC-1 Calibration Checker.
- For conductivity material analysis, manufacturing QC, or R&D: Olympus Conductivity Standard Calibration.
- For portable single-phase watthour meter testing in the field or meter shop: Radian Research RD-20-202 Dytronic Portable Watthour Standard.
AD584 Resistance Standard Calibration Test Equipment
This compact reference board from China uses a green PCB and measures 5 by 3 centimeters. It is described as a resistance and capacitance board for calibrating AD584 multimeters, with intended uses in measuring-instrument calibration, electronic production, teaching experiments, and automatic test systems. It is new and compact, but its scope is a reference board; operators who also want voltage, current, frequency, resistance, and capacitance outputs in one unit can look to the Frequency Devices TEC-1.
Frequency Devices TEC-1 Calibration Checker
The TEC-1 from Frequency Devices is a new, USA-made checker that lets you check the calibration of common bench instruments without sending them out. Outputs include 5.000 DC volts at ±0.01%, 1.000 AC volts RMS at ±0.02%, 1.000 mA DC and 1.000 mA AC current sources at ±0.1%, frequency outputs at 100 kHz, 10 kHz, 1 kHz, and 100 Hz with ±100 ppm, 100k/10k/1k ohm resistors at ±0.1%, and 0.1/0.01/0.001 uF NPO capacitors. Actual measured values are traceable to the National Bureau of Standards. Choose it when you want one bench box for voltmeters, current meters, frequency counters, resistance meters, and capacitance meters. For installed kWh meter testing, the Radian RD-20-202 in this group is the portable watthour reference.
Olympus Conductivity Standard Calibration
Olympus offers this used conductivity standard around three reference values: 30.45, 39.65, and 59.06 %IACS/EW, with a calibration date of 10/03/2025. The intended use is precise material analysis, quality control in manufacturing, and research and development, while the title highlights nondestructive conductivity work. The set is appropriate when your job is conductivity-specific rather than broad electrical calibration. The used unit's reference point is that calibration date; if you also need voltage, current, or frequency outputs, the Frequency Devices TEC-1 covers those.

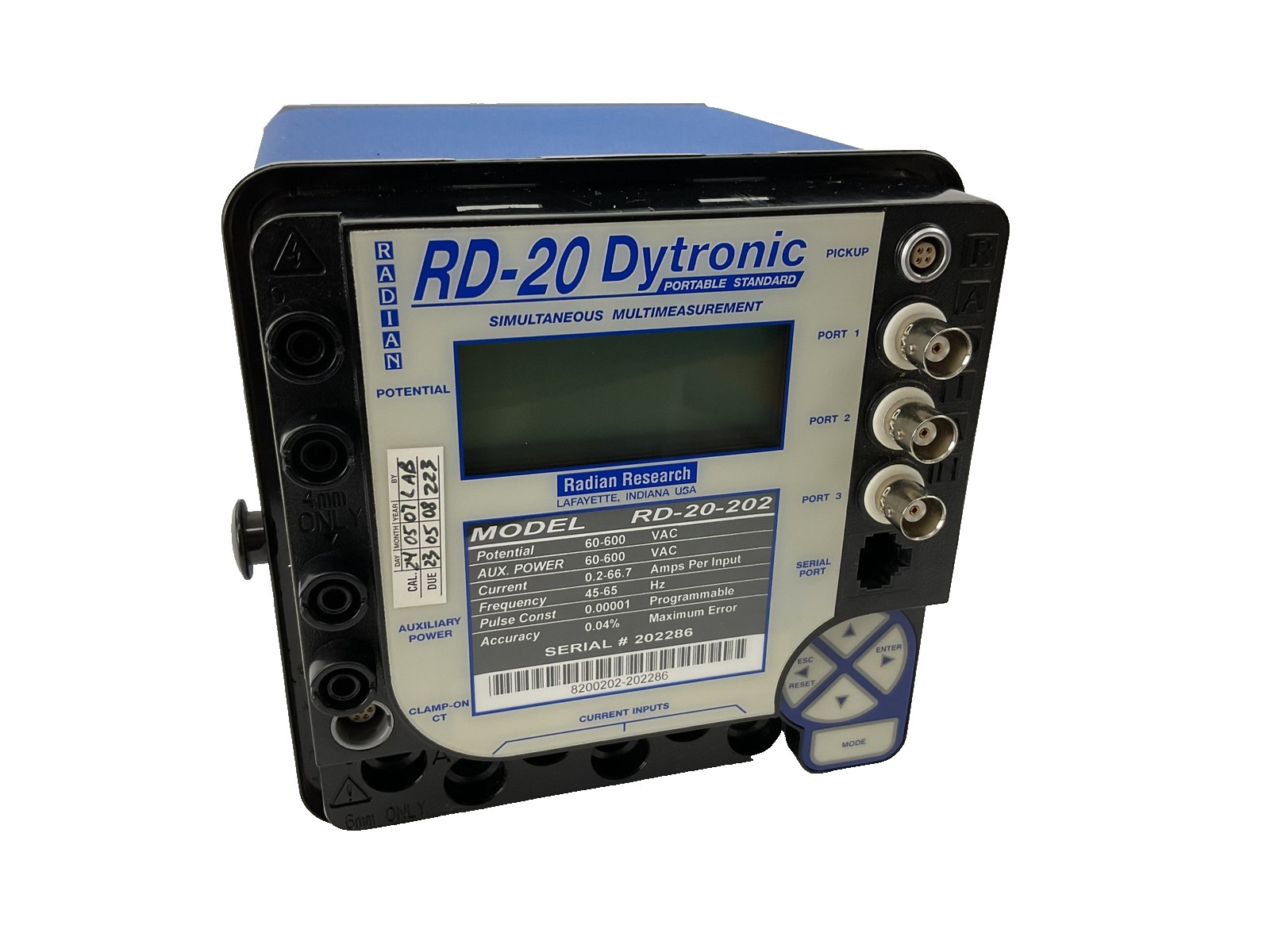

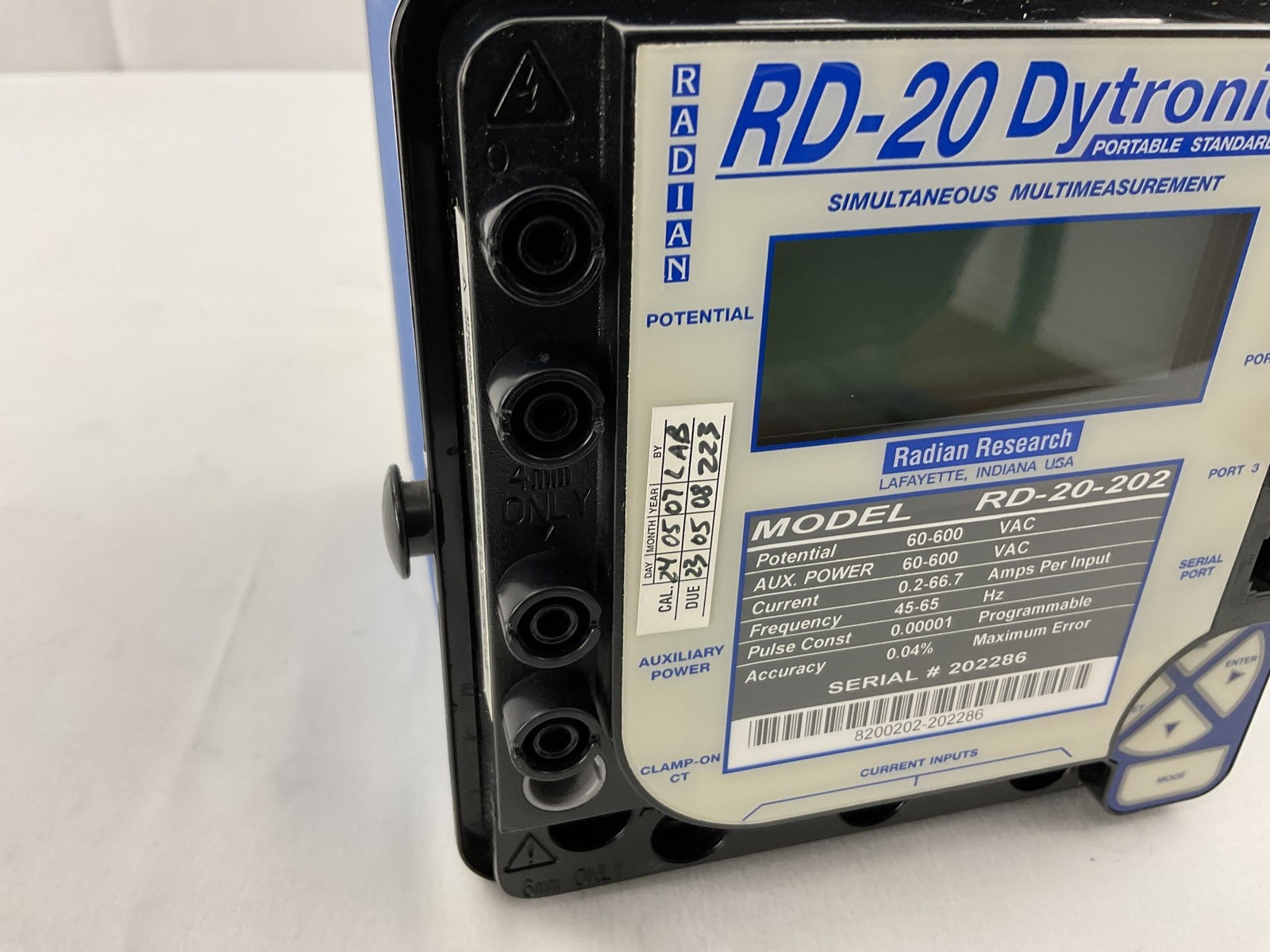

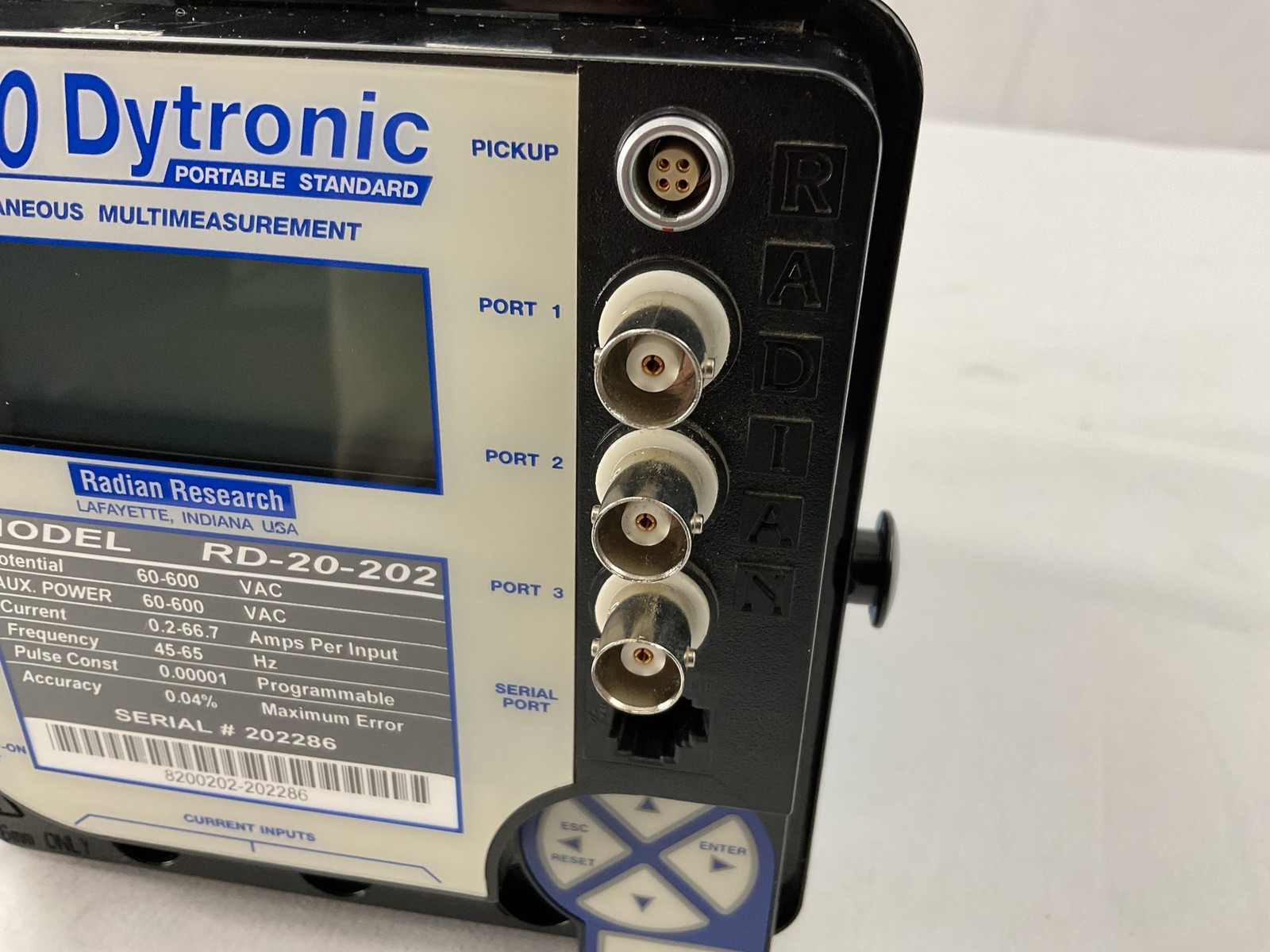

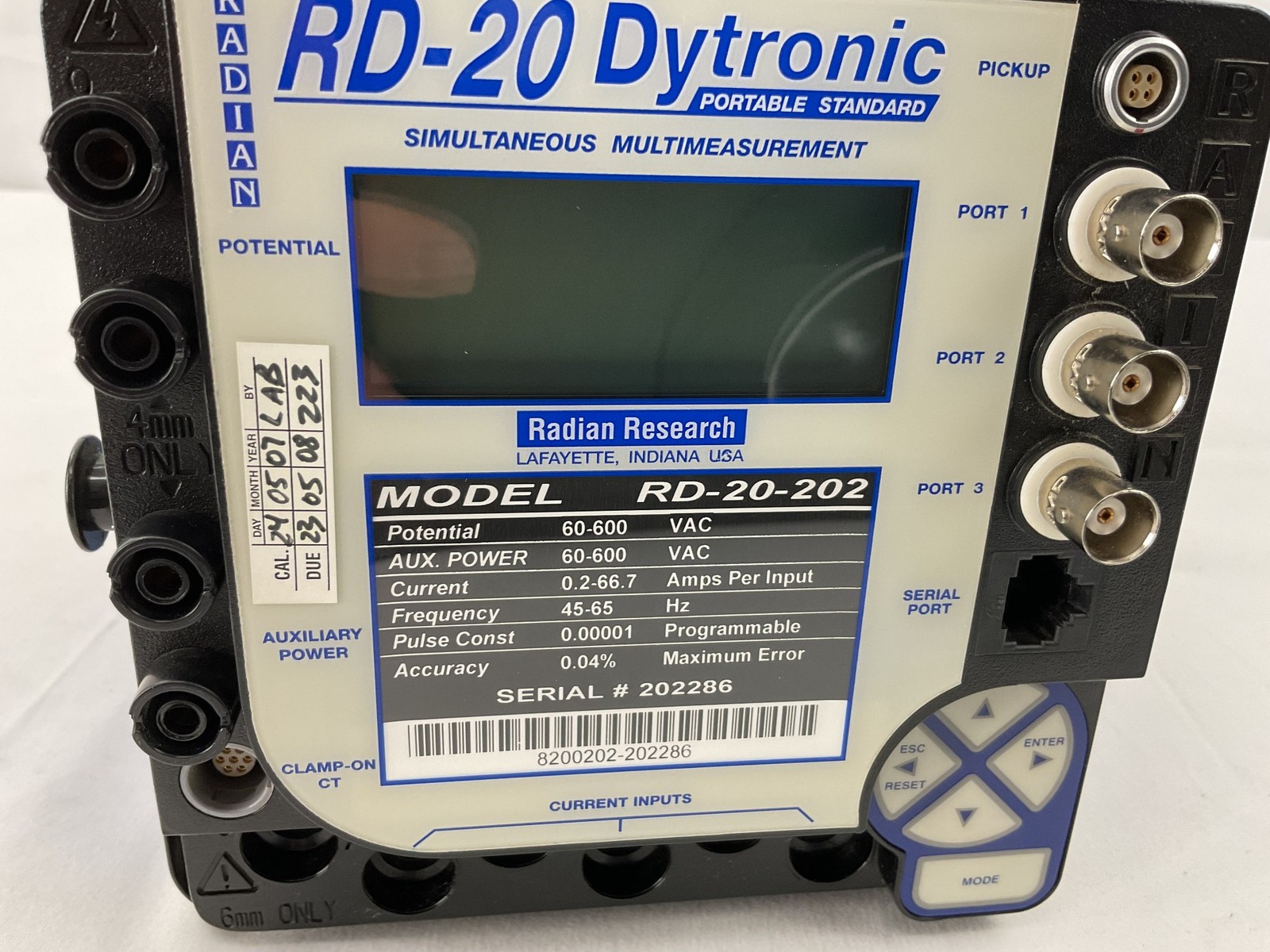

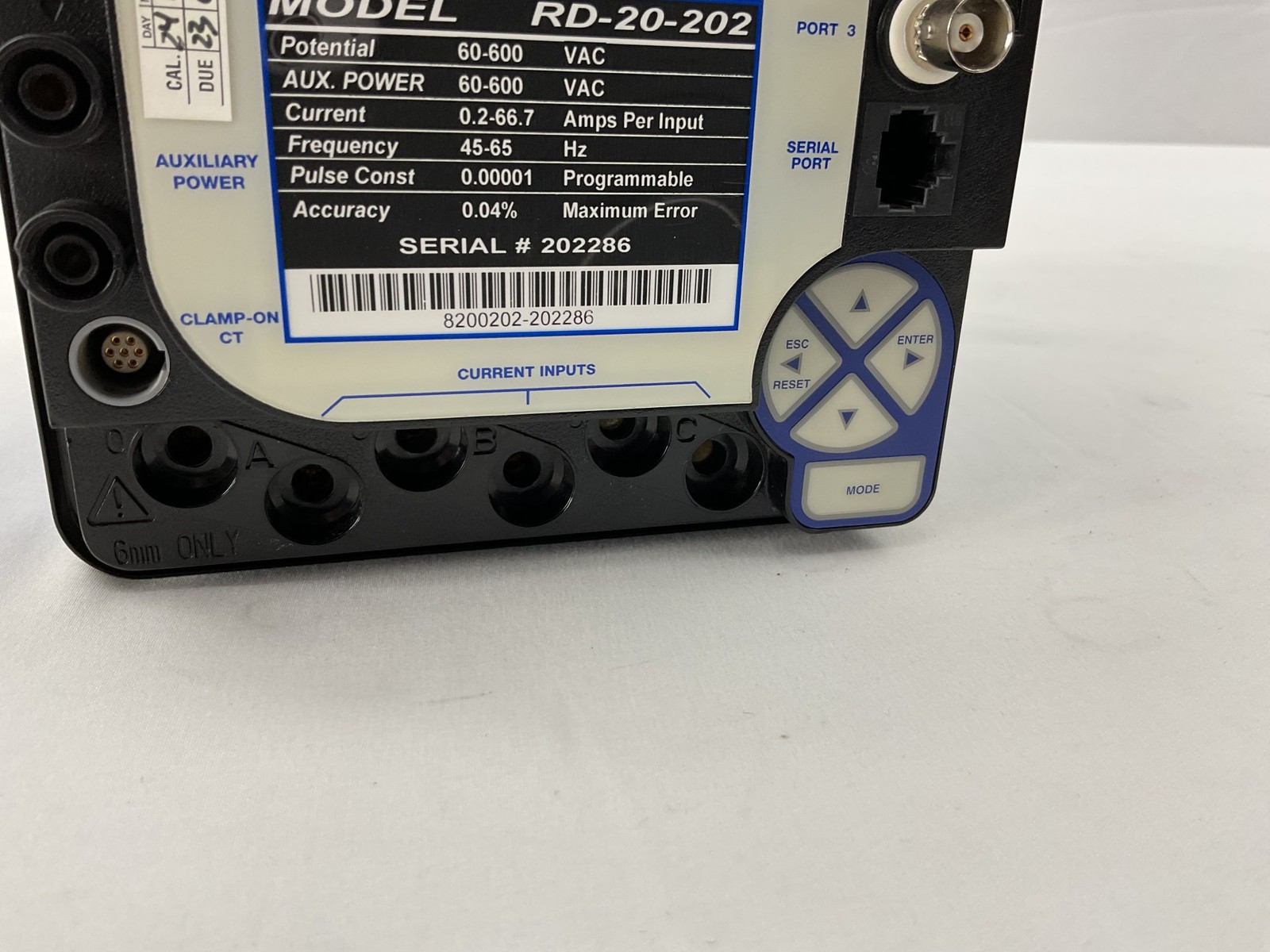

Radian Research RD-20-202 Dytronic Portable Watthour Standard
The RD-20-202 is a portable single-phase watthour reference standard made in the USA by Radian Research. Its accuracy class is 0.04% maximum error, with a current range of 0.2 to 66.7 A and a frequency range of 45 to 65 Hz. Features include an LCD, BNC pulse I/O, RS-232, and multi-measurement capability. That combination aligns with utility kWh meter testing, field calibration, and meter-shop work. This used unit is the field-focused option in this group: a portable reference for installed revenue-class meters.
Final Recommendation by Use Case
- For AD584 multimeter bench work: AD584 Resistance Standard Calibration Test Equipment.
- For a single bench checker covering multiple instrument types: Frequency Devices TEC-1 Calibration Checker.
- For conductivity material analysis and manufacturing QC: Olympus Conductivity Standard Calibration.
- For portable single-phase meter testing in the field or meter shop: Radian Research RD-20-202 Dytronic Portable Watthour Standard.
