Quick Take
When you're performing thermal borescope visual inspection, the camera you point into a vent, around a pipe, or at a crowded circuit board has one job: show heat patterns clearly enough for a confident call. The Thermal Master models here split into two image-quality tiers. The P3 listings output a higher-resolution enhanced image from a larger native sensor, while the P1 listings output a lower-resolution enhanced image from a smaller native sensor. Both tiers share a macro lens, 25Hz refresh rate, 15× digital zoom, and a -20°C to 600°C temperature range. If your inspections involve tiny PCB components, the P3's detail is the main reason to spend more. For broader HVAC or electrical checks, the P1's image is likely sufficient for most routine checks.
Listed Price at a Glance
| Product | Listed Price | Price Bar |
|---|---|---|
| P3 - iPhone & Android | USD 269.00 | |
| P3 - PCB & HVAC | USD 269.00 | |
| P1 - Repair | USD 119.93 | |
| P1 - Type-C | USD 129.00 |
Decision Matrix
| If you need... | Choose... | Why |
|---|---|---|
| Maximum detail for PCB or macro inspections | P3 (iPhone & Android) | The P3 tier outputs the highest-resolution enhanced image in this group, ideal for spotting tiny heat differences. |
| P3 detail with a US Country of Origin | P3 (PCB & HVAC) | Same high-detail P3 output, with Country of Origin listed as United States and a title that calls out PCB and HVAC. |
| A solid image for routine HVAC and electrical checks | P1 (Repair) | The P1 tier outputs a mid-resolution enhanced image from a smaller native sensor, which covers many field checks. |
Product Notes

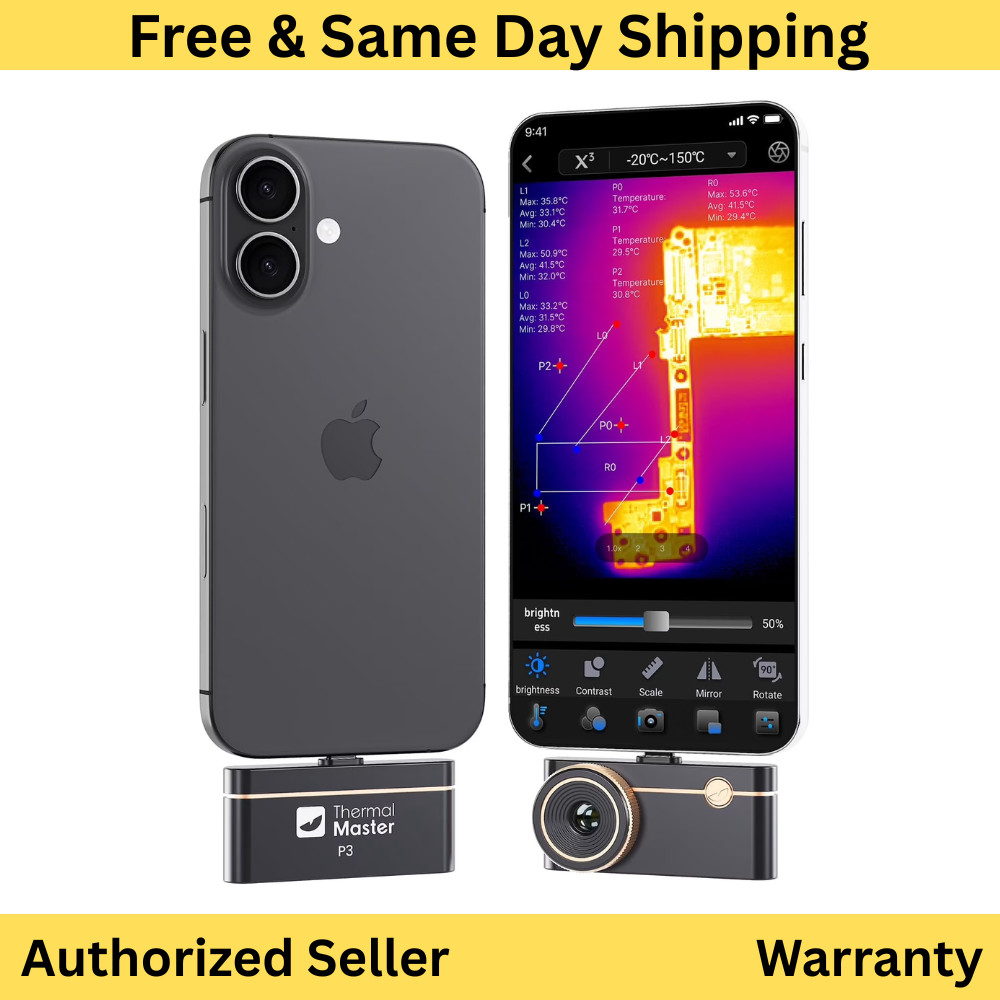

P3 Thermal Camera for iPhone&Android Phone 512*384 X³Resolution 600℃ Macro Lens

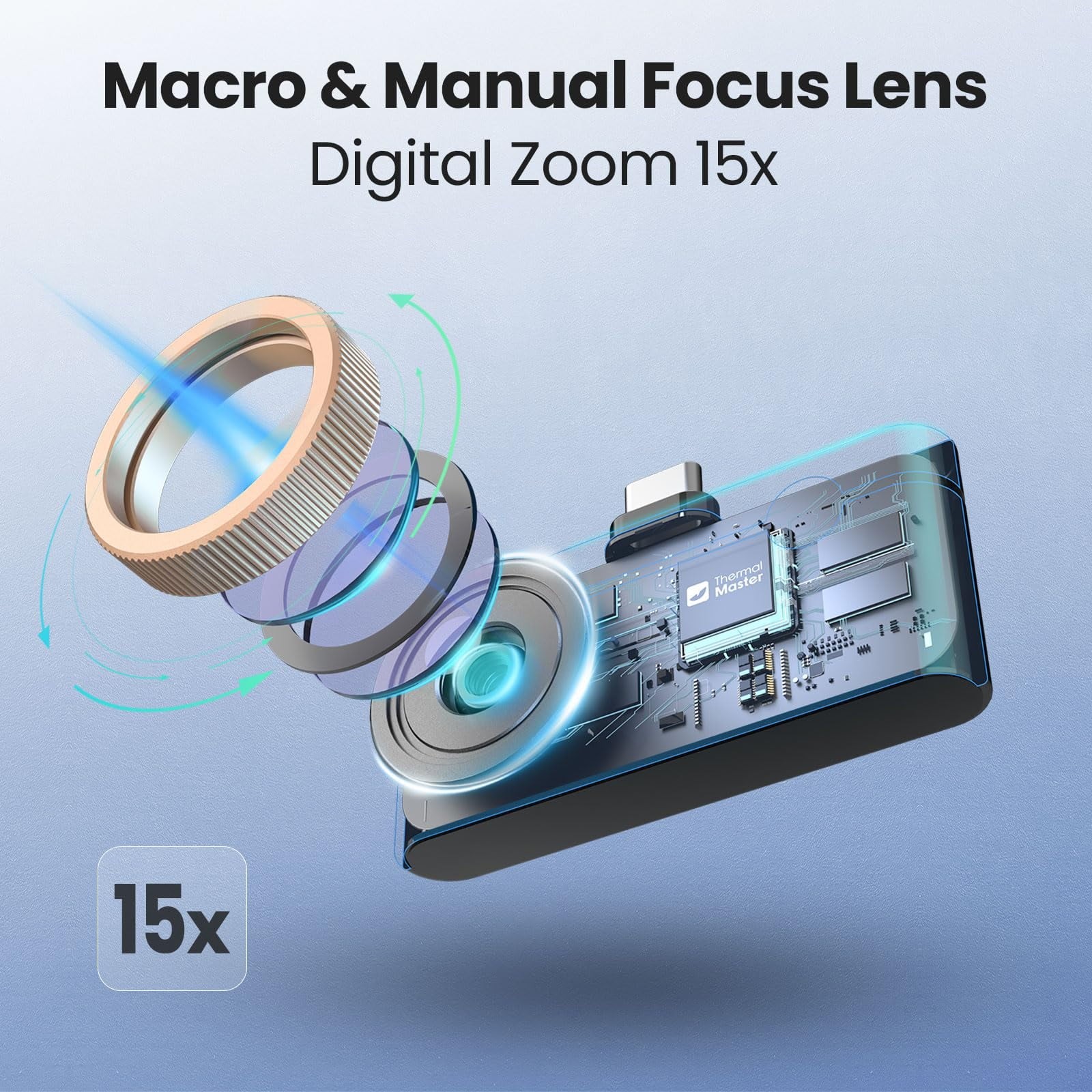

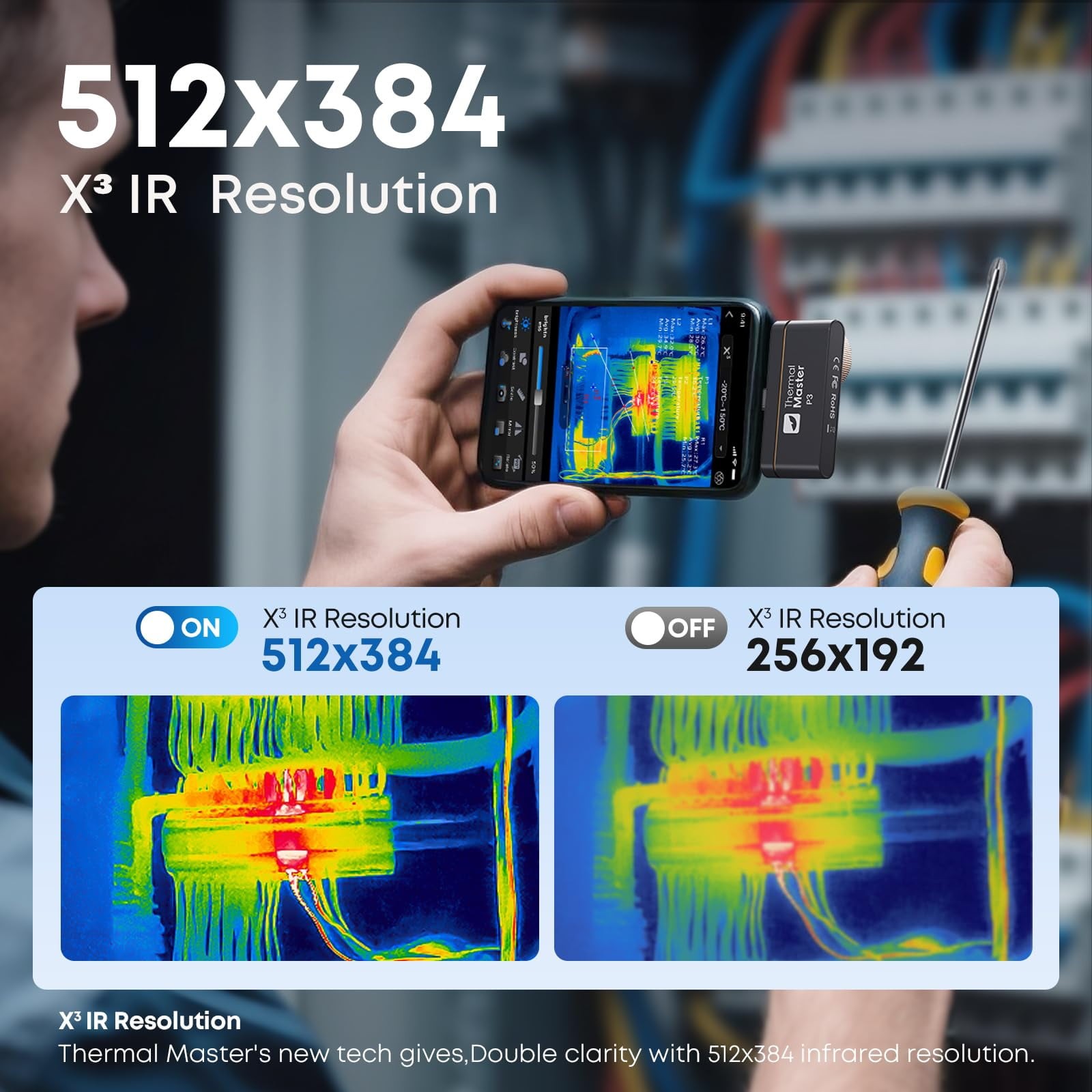

This listing holds the highest X³ output in the group, with native 256×192 sensor data upscaled to a 512×384 enhanced image. The 8mm manual focus lens gives a 40° × 30° field of view, and the combination of 15× digital zoom and 25Hz refresh rate supports real-time scanning. If you're inspecting circuit boards or small mechanical parts, the extra pixel density gives you a better chance of seeing fine heat differences. Keep in mind that the manual focus requires you to adjust for near and far targets, and this is the $269.00 end of the price range.
Thermal Master P3 Thermal Camera for iPhone Android | 512×384 IR | PCB HVAC
Also listed at USD 269.00, this P3 version shares the same 256×192 native sensor and 512×384 X³ enhancement as the other P3. The listed Field of View is 40° x 30.2°, and the title specifically mentions PCB and HVAC, making it easy to identify for those tasks. Country of Origin is listed as United States. If you want the same high detail but prefer a US origin statement and a title geared to component work, this is the listing to choose. The trade-off is the same as the other P3: you're paying the top listed price in this group.
IOS&Android P1 Thermal Camera 320*240 USB-C Infrared Thermal Imager 600℃ Repair
This P1 listing at USD 119.93 is the lowest price in the comparison. It uses X³ IR technology to boost a native 160×120 sensor to 320×240 resolution, and it includes a 25Hz refresh rate, 15× digital zoom, and an adjustable macro lens. Temperature range is -20°C to 600°C with ±2℃ accuracy. For general thermal borescope visual inspection around electrical panels, HVAC systems, and insulation, this image quality is workable. The main limitation is the resolution ceiling: you won't see the same fine detail as the P3, so if you're chasing hairline cracks on dense circuit boards, you may need more pixels.
320*240 X³IR Resolution P1 Thermal Imaging Camera IOS&Android 600℃ Type-C 25Hz
This second P1 listing is USD 129.00, a bit more than the other P1 but still below the P3 tier. It shares the same 160×120 native sensor, 320×240 X³ resolution, 25Hz refresh rate, ±2℃ accuracy, and adjustable macro lens. The title emphasizes the Type-C connection and 25Hz, which are handy if you want those specs called out at a glance. Choose this listing if you prefer a title that spells out the interface and frame rate. The limitation is the slightly higher price compared to the other P1, with the same resolution limit relative to the P3, so you're paying a small extra cost for the wording rather than a performance gain.
Final Recommendation by Use Case
For PCB diagnostics, automotive electrical troubleshooting, and any inspection where a small temperature delta matters, the P3 tier is the right call. Its high-detail output gives you more confidence when you're staring at a crowded board. For HVAC system checks, insulation scanning, and general electrical panel work, the P1 tier covers the job with ease. If you're choosing between the two P1 listings, the first one gives you the same core performance and a repair-oriented title; the other positions the same specs around Type-C and 25Hz. Between the two P3 listings, you're choosing between Country of Origin statements and title copy, not image quality. Let the smallest target you inspect be the tiebreaker: tiny components point to P3, broader areas point to P1.
