Choosing an oscilloscope usually means deciding how much bandwidth, how many channels, and how much portability you actually need. The four options below cover a wide price range, and each one makes a different trade-off, so the real challenge is figuring out which compromise fits your workflow. No single scope wins every category, so match the instrument to the signals you most often probe.
Quick take
- If you need a low-cost portable scope with a built-in multimeter and signal generator, the 50MHz FNIRSI 2C53T is the least expensive route.
- If you want a large screen plus signal generation and spectrum analysis in one portable package, the FNIRSI DPOS350P covers that middle ground.
- If raw bandwidth matters most, the used Tektronix TDS 380 gives you 400 MHz and 2 GS/s on a tighter budget.
- If a new four-channel bench scope with optional digital channels is your priority, the Siglent SDS804X HD sits at the top of the range.
Price Comparison at a Glance
| Product | Price | Price Bar |
|---|---|---|
| Siglent SDS804X HD - Mixed Signal Oscilloscope (4 Channel / 70 MHz) | USD 461.00 | |
| 4IN1 Digital Oscilloscope DPOS350P 350MHz 2CH Signal Generator Spectrum Analyzer | USD 225.00 | |
| Tektronix TDS 380 400MHz 2GS/s 2 Channel Digital Real-Time Oscilloscope Tested | USD 195.00 | |
| 50MHz Dual Channel Oscilloscope Multimeter Signal Generator Model FNIRSI 2C53T | USD 64.50 |
Decision Matrix
| Your priority | Closest match |
|---|---|
| Portable, low-cost field work | FNIRSI 2C53T |
| Built-in signal generator and spectrum analyzer with a large screen | FNIRSI DPOS350P |
| Maximum bandwidth on a sub-$200 budget | Tektronix TDS 380 |
| New 4-channel bench scope with expansion options | Siglent SDS804X HD |
Product Notes

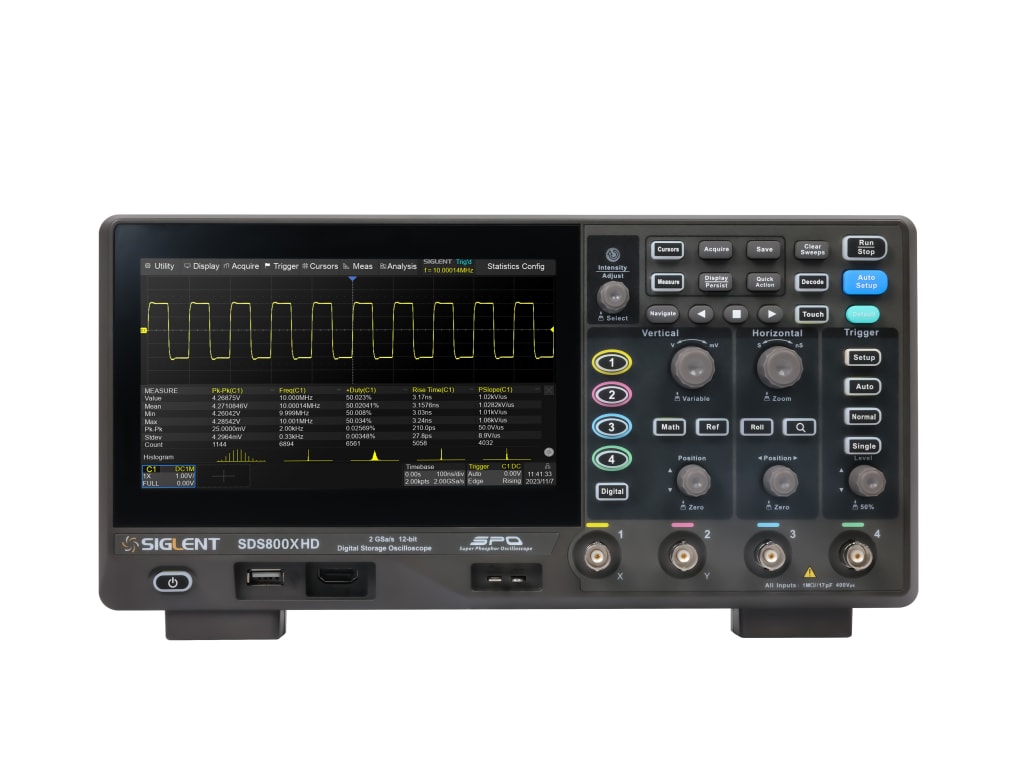

Siglent SDS804X HD
At $461, this is the most expensive scope in the group, but it buys a new benchtop instrument with four analog channels and 70 MHz bandwidth. The 16 digital channel option and waveform generator are sold separately, so the base price covers the core oscilloscope. If you expect to grow into mixed-signal work, the HD front-end design and high waveform capture rate make this a flexible foundation. The 50 Mpts memory depth supports longer captures than a simple two-channel scope. The limitation is the initial outlay: you are paying for room to expand rather than the highest bandwidth here.

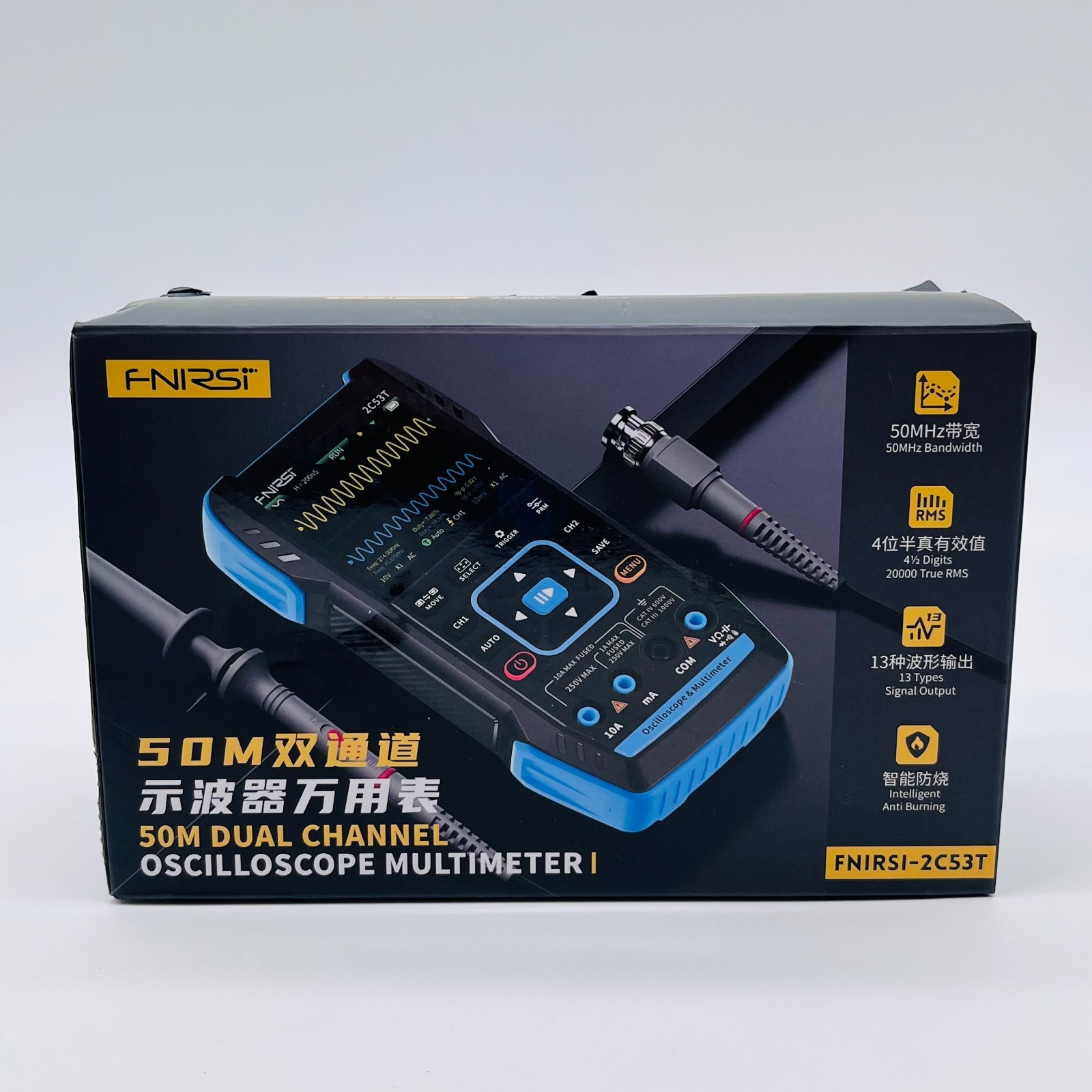

50MHz Dual Channel Oscilloscope Multimeter Signal Generator Model FNIRSI 2C53T
The 2C53T is the only handheld in this lineup, and its $64.50 price makes it the least expensive way to get a digital oscilloscope, multimeter, and signal generator all in one unit. With a 50 MHz maximum bandwidth and two channels, it suits audio, low-frequency digital, and general repair work where portability matters more than speed. Because it is a used unit, budget for a quick check when it arrives. It also keeps the setup simple: one handheld device replaces several bench tools on site.
4IN1 Digital Oscilloscope DPOS350P 350MHz 2CH Signal Generator Spectrum Analyzer
At $225, the DPOS350P splits the difference between the low-cost handheld and the Siglent benchtop. It combines a 350 MHz oscilloscope with a signal generator and spectrum analyzer in a single open-box package, and its 7-inch, 1024x600 display gives you far more screen room than the handheld. The two channels are the main compromise. A 50,000 wfm/s capture rate helps reveal intermittent glitches, and the 1 ns rise time is useful for fast digital edges. If you need a portable all-in-one workhorse with a bigger display, this is the one.

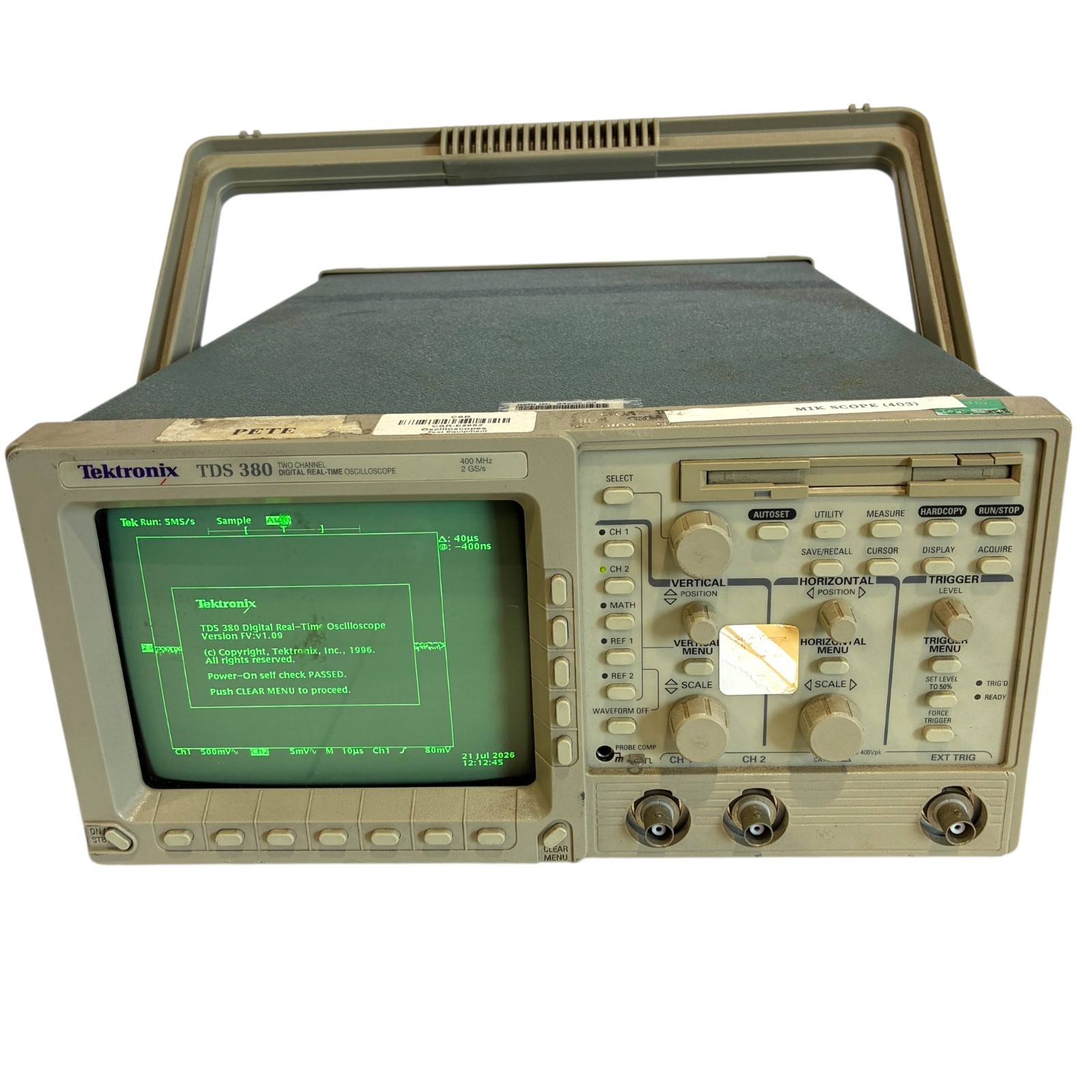

Tektronix TDS 380
The TDS 380 is a used two-channel real-time oscilloscope with the highest bandwidth in this group at 400 MHz and a 2 GS/s sampling rate. Its rear panel includes RS-232, GPIB, Centronics, and video output, making it practical for bench setups where data transfer and external display matter. Autoset, a measure menu, and math functions are built into the front panel. The trade-off is an older CRT interface and the 8-bit resolution, which feels dated next to the LCD-equipped FNIRSI models. If you need maximum bandwidth on a sub-$200 budget, this tested unit is the direct route.
Final Recommendation by Use Case
Pick the Siglent SDS804X HD if you want a new four-channel bench scope and expect to add the optional digital channel and generator modules later. Pick the FNIRSI DPOS350P if you need a single portable instrument with a big screen, spectrum analysis, and signal generation. Pick the Tektronix TDS 380 when raw bandwidth per dollar matters and you are comfortable with a used CRT scope. Pick the FNIRSI 2C53T when your work is truly mobile and your budget is the priority.
