Choosing a signal spectrum analyzer is not one decision; it is four. Are you scanning an FM broadcast band, adding a visualizer to an audio rack, pairing an oscilloscope with a spectrum analyzer on a workbench, or restoring a vintage stereo system? These four tools are not interchangeable, and each one is built around a different core task.
Quick Take
The Deva Broadcast Band Scanner 2 is a purpose-built FM broadcast monitoring tool with logging software. The BDS PP-131 is an audio spectrum display with XLR and RCA inputs. The FNIRSI DPOS350P is a 4-in-1 digital oscilloscope with a signal generator and spectrum analyzer functions. The Fisher EQ-890 is a stereo graphic equalizer and spectrum analyzer for line-level analog audio.
Listed Price Comparison
| Product | Listed Price | Price Bar |
|---|---|---|
| Deva Broadcast Band Scanner 2 | $899.00 | |
| BDS PP-131 | $275.50 | |
| FNIRSI DPOS350P | $225.00 | |
| Fisher EQ-890 | $199.00 |
Decision Matrix
- For FM broadcast band congestion mapping and logging of RDS, pilot, and audio levels: Deva Broadcast Band Scanner 2.
- For a rack-mounted audio spectrum visualizer with XLR and RCA inputs: BDS PP-131.
- For an electronics workbench where you need an oscilloscope, signal generator, and spectrum analyzer in one unit: FNIRSI DPOS350P.
- For a vintage stereo system that needs equalization and a spectrum display: Fisher EQ-890.
Product Notes
Deva Broadcast Band Scanner 2
Deva Broadcast Band Scanner 2 is the most specialized tool here. It scans the 64-108 MHz FM band, measuring RF level, MPX deviation, left and right audio levels, RDS, and pilot injection, then logs those measurements on a Windows PC over USB. The companion software can convert logs into KMZ format for viewing in Google Earth, making it a practical choice for broadcast engineers who need to document congestion and station identification parameters. The limitation is its single-purpose design: this is an FM band scanner, not a general-purpose oscilloscope or audio visualizer, and the unit is listed as used, so it buys a focused professional workflow rather than a broad bench instrument.

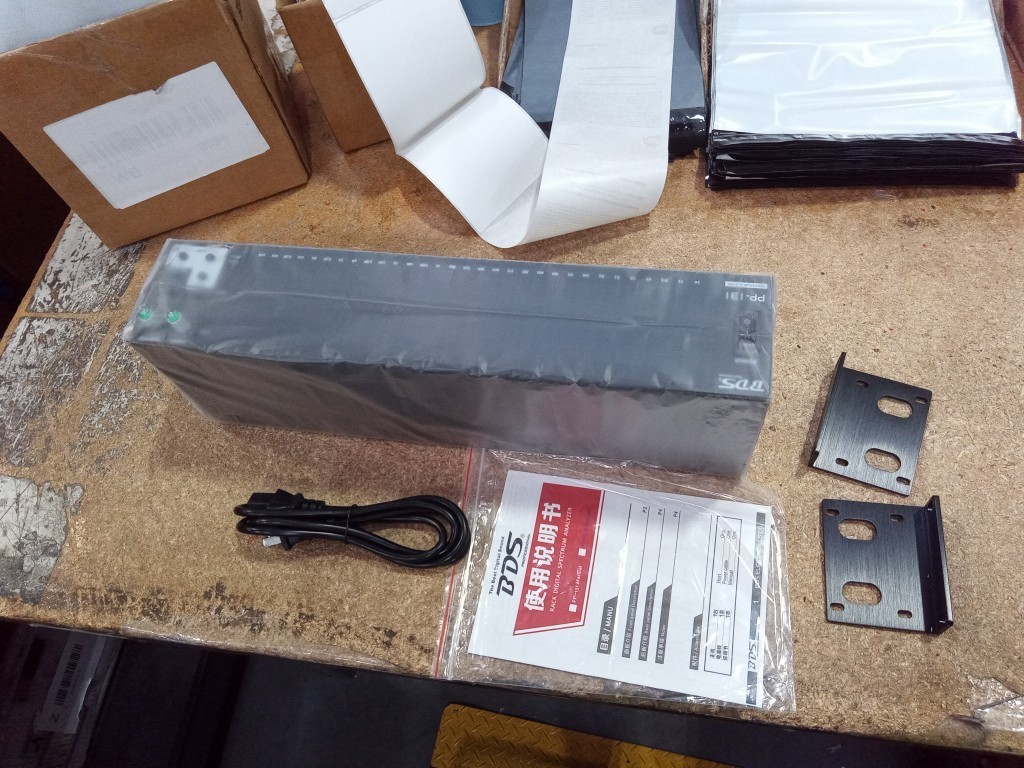

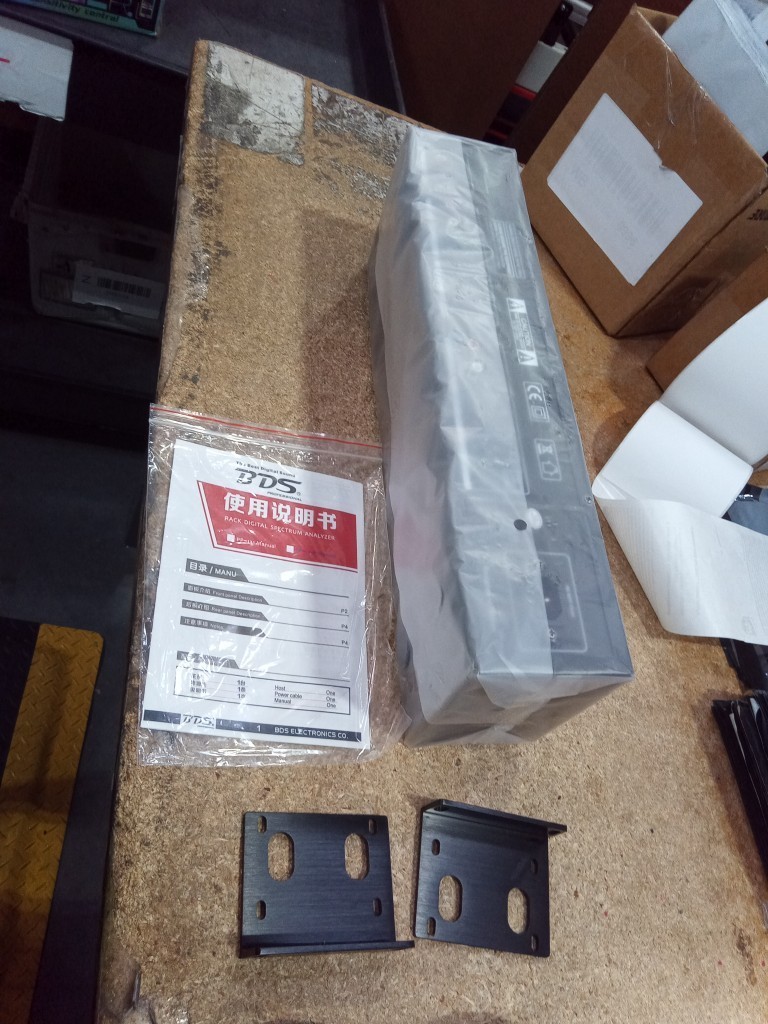

BDS PP-131

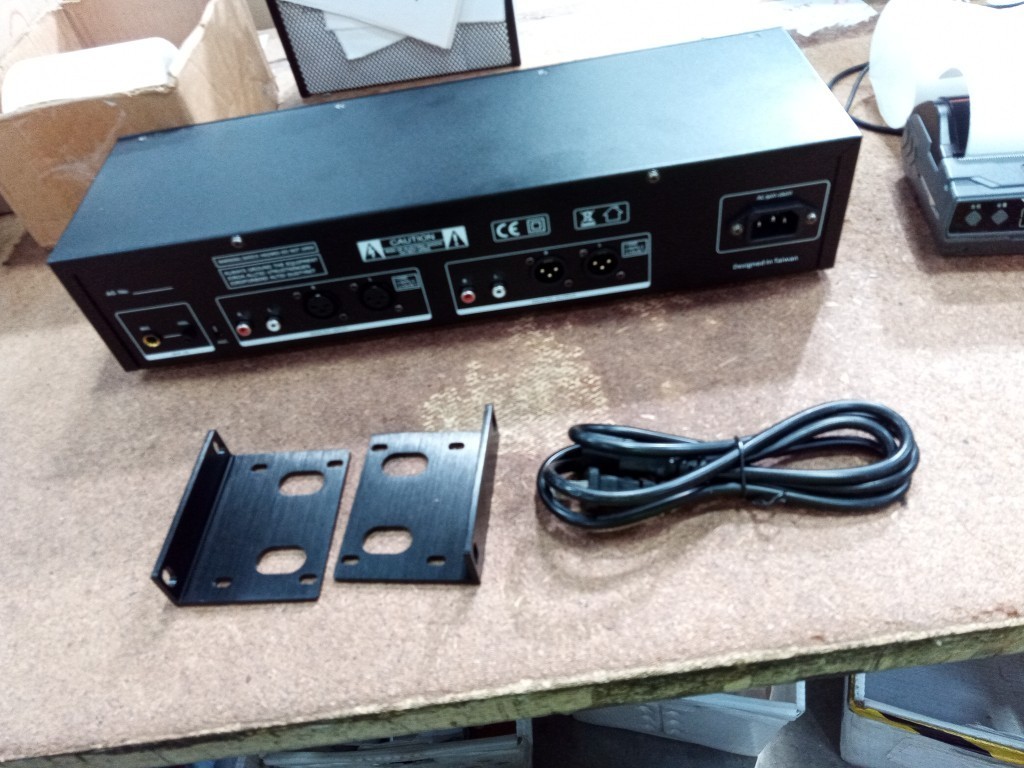

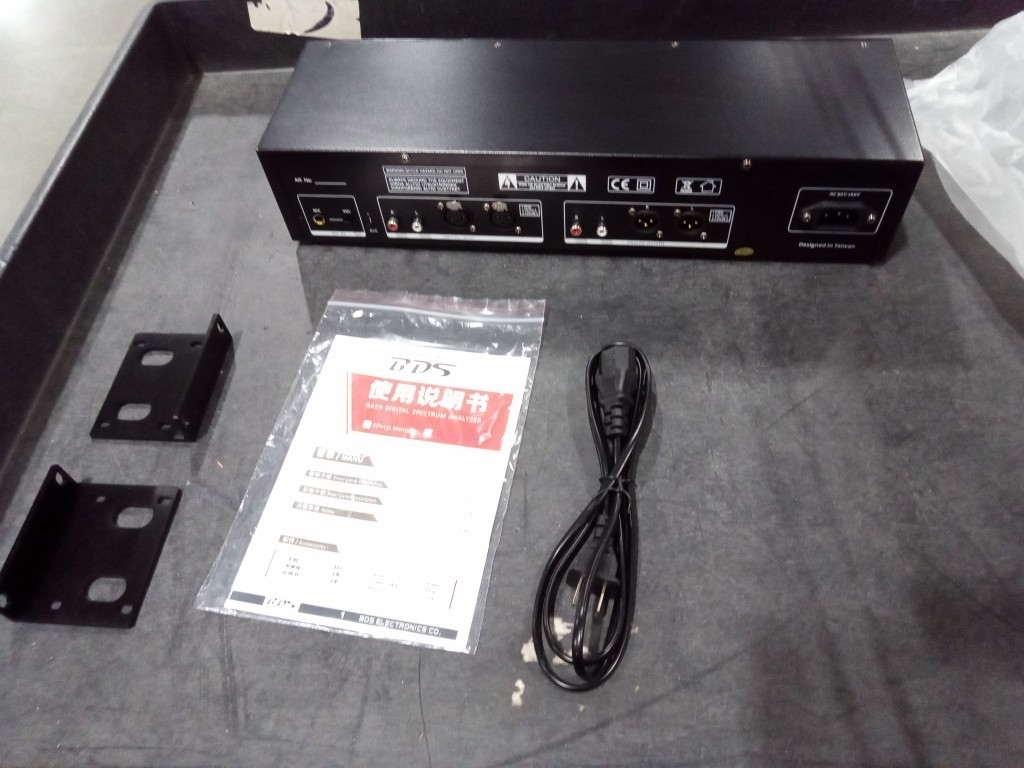

The BDS PP-131 is an audio spectrum analyzer with a green 31-segment display and a high-performance DSP chip. It fits a standard 2U rack, accepts XLR and RCA inputs, and provides real and smooth display modes, peak hold time and main fall time settings, stereo sampling, and brightness and input level sensitivity adjustments. That makes it a useful visual companion for line-level audio in a studio, broadcast booth, or hi-fi rack. The limitation is the audio-only focus: the PP-131 is a spectrum display and VU-style indicator, not an RF analyzer or oscilloscope, and the unit is listed as new open-box.

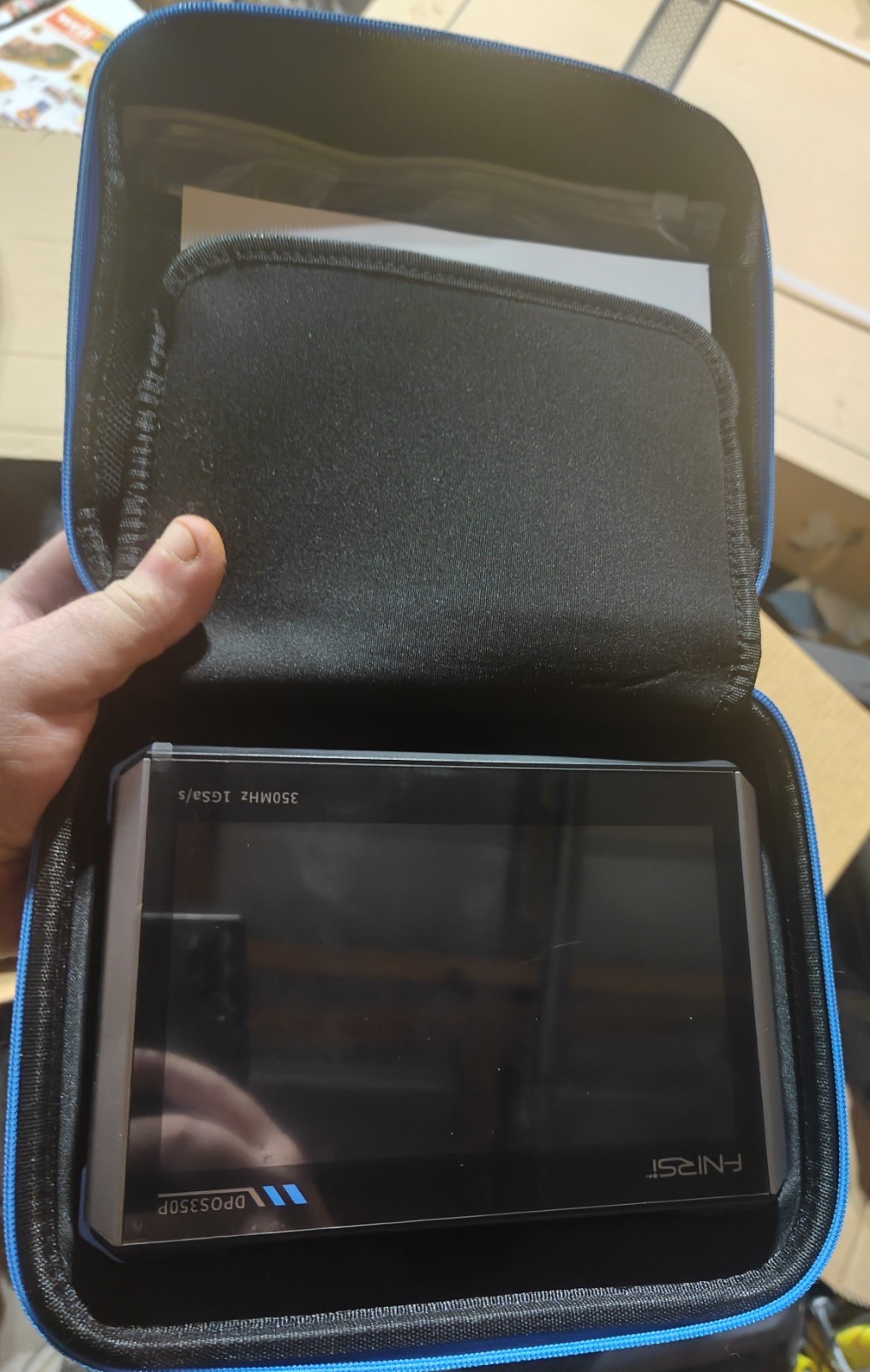

FNIRSI DPOS350P
The FNIRSI DPOS350P is a 4-in-1 digital oscilloscope that combines two channels, a 350 MHz bandwidth, a signal generator, and spectrum analyzer functions on a 7-inch 1024×600 display. It is built for fast circuit work, with a 1ns rise time, a time base from 5ns to 50s, a maximum waveform capture rate of 50,000 wfm/s, and a real-time sampling rate of 1GSa/s. High-resolution mode from 8 to 16 bits and ±400V overvoltage protection add headroom for detailed measurements. The limitation is that this is an oscilloscope-first instrument: its spectrum analysis applies to the signals you connect to the scope inputs, not over-the-air FM broadcasts, and the listed condition is open box.

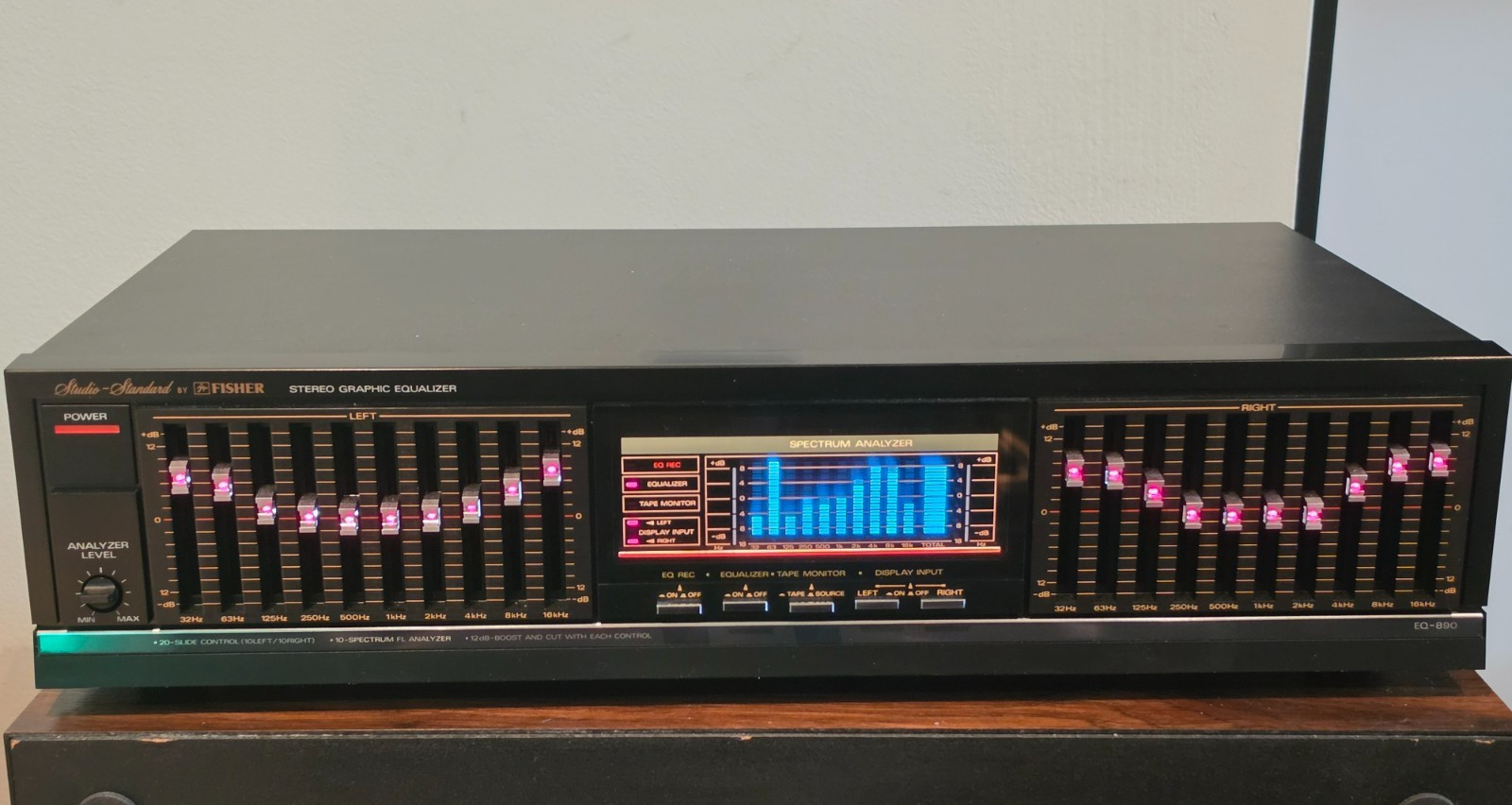

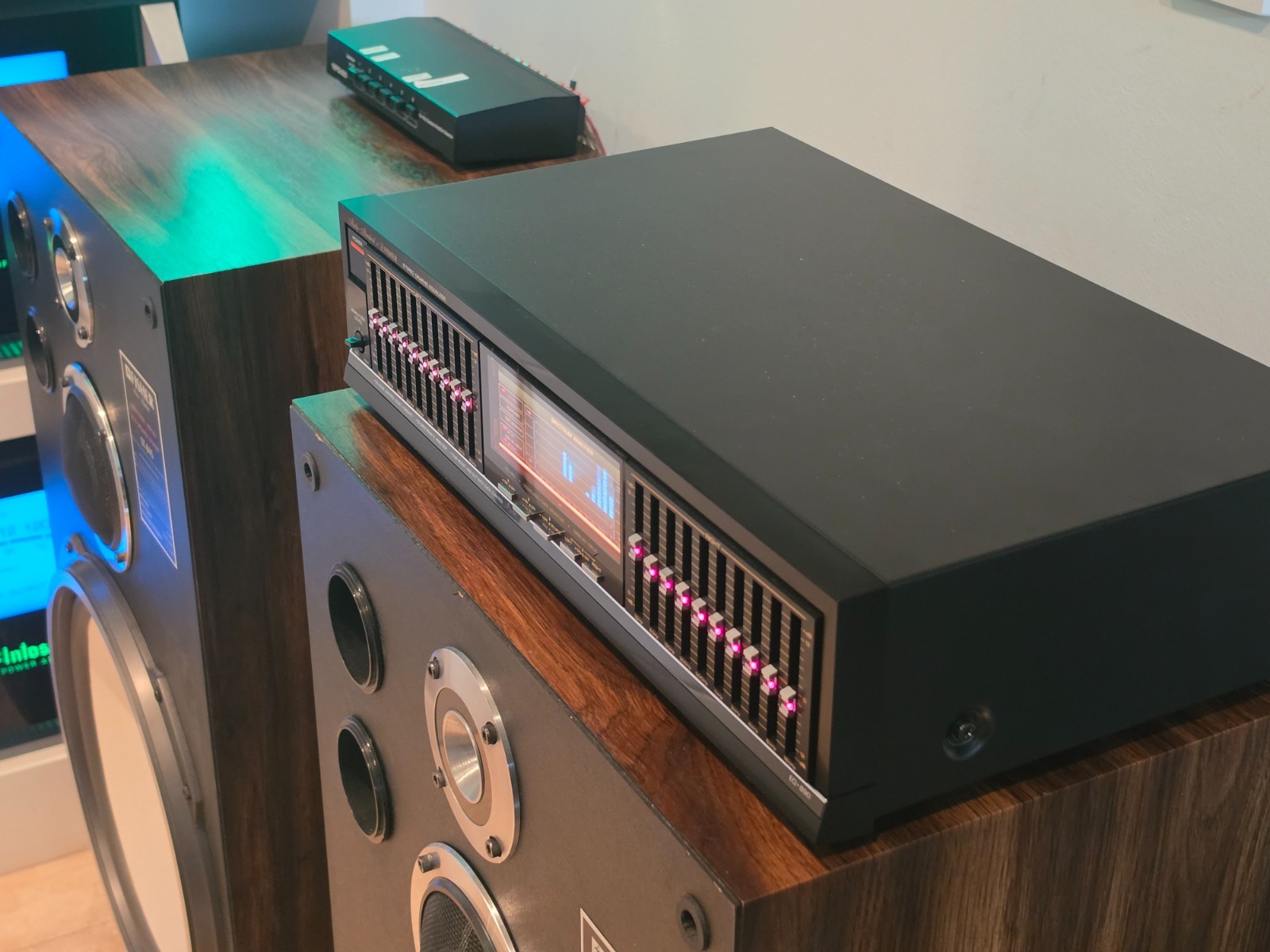

Fisher EQ-890

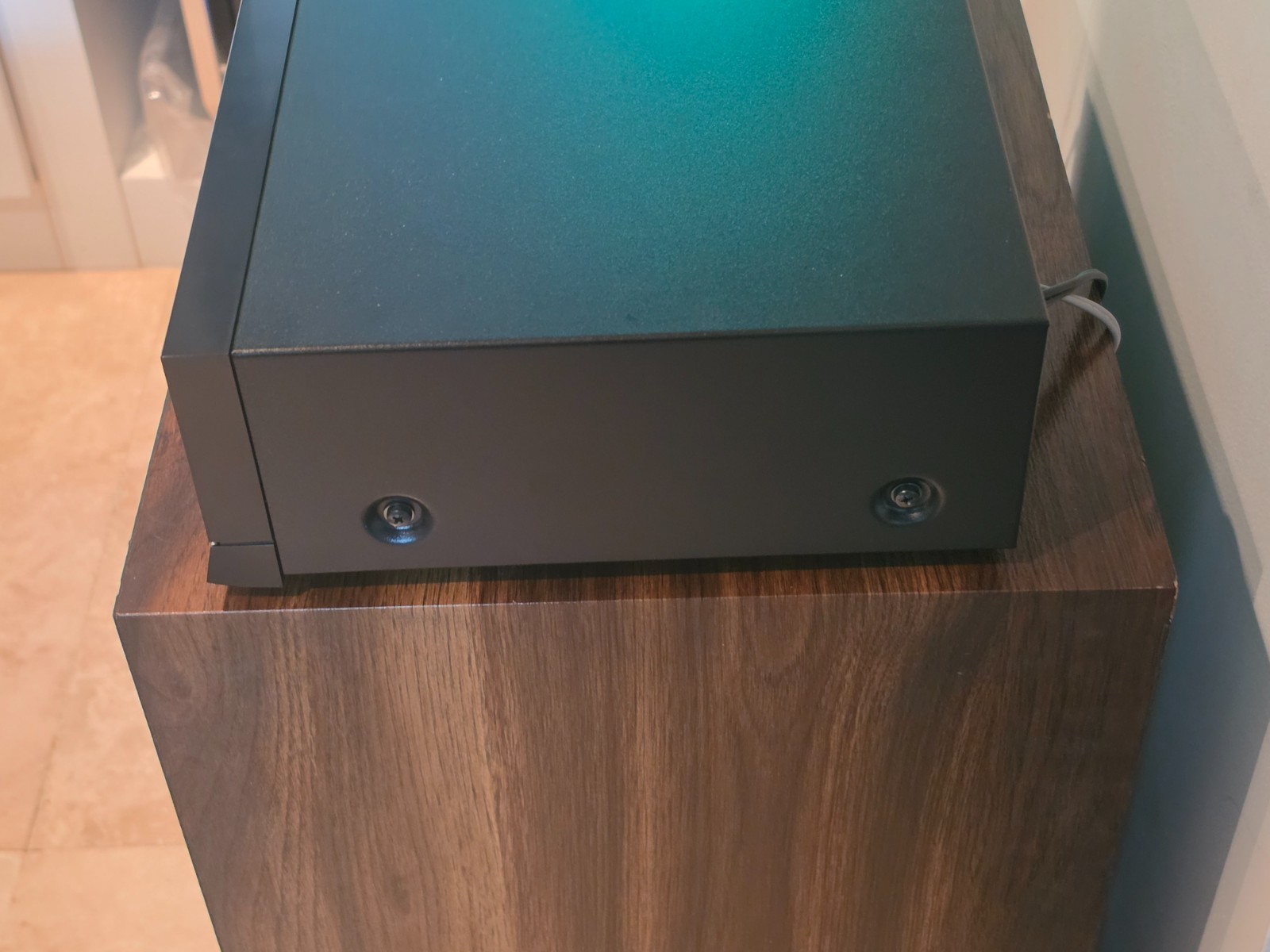

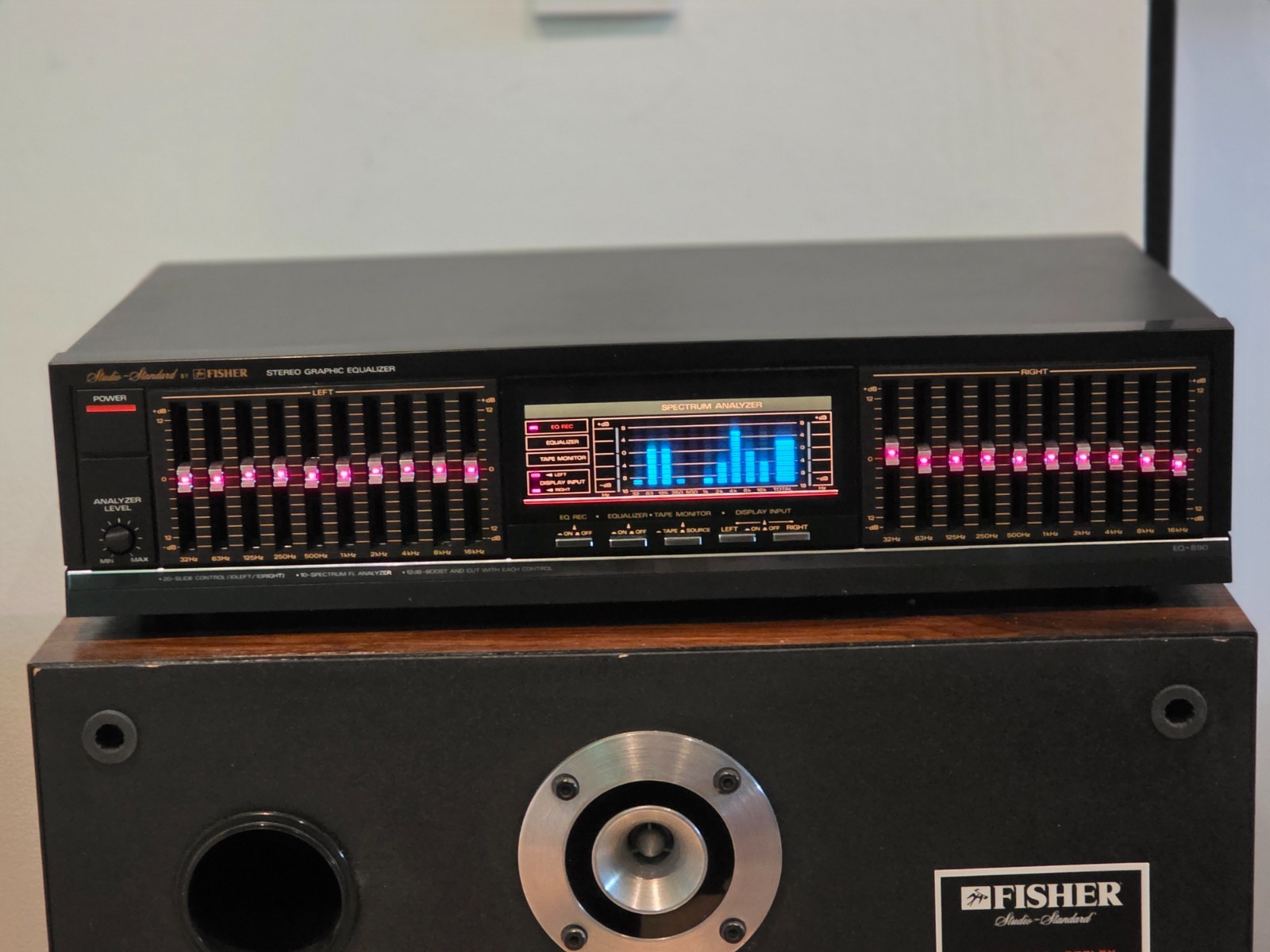

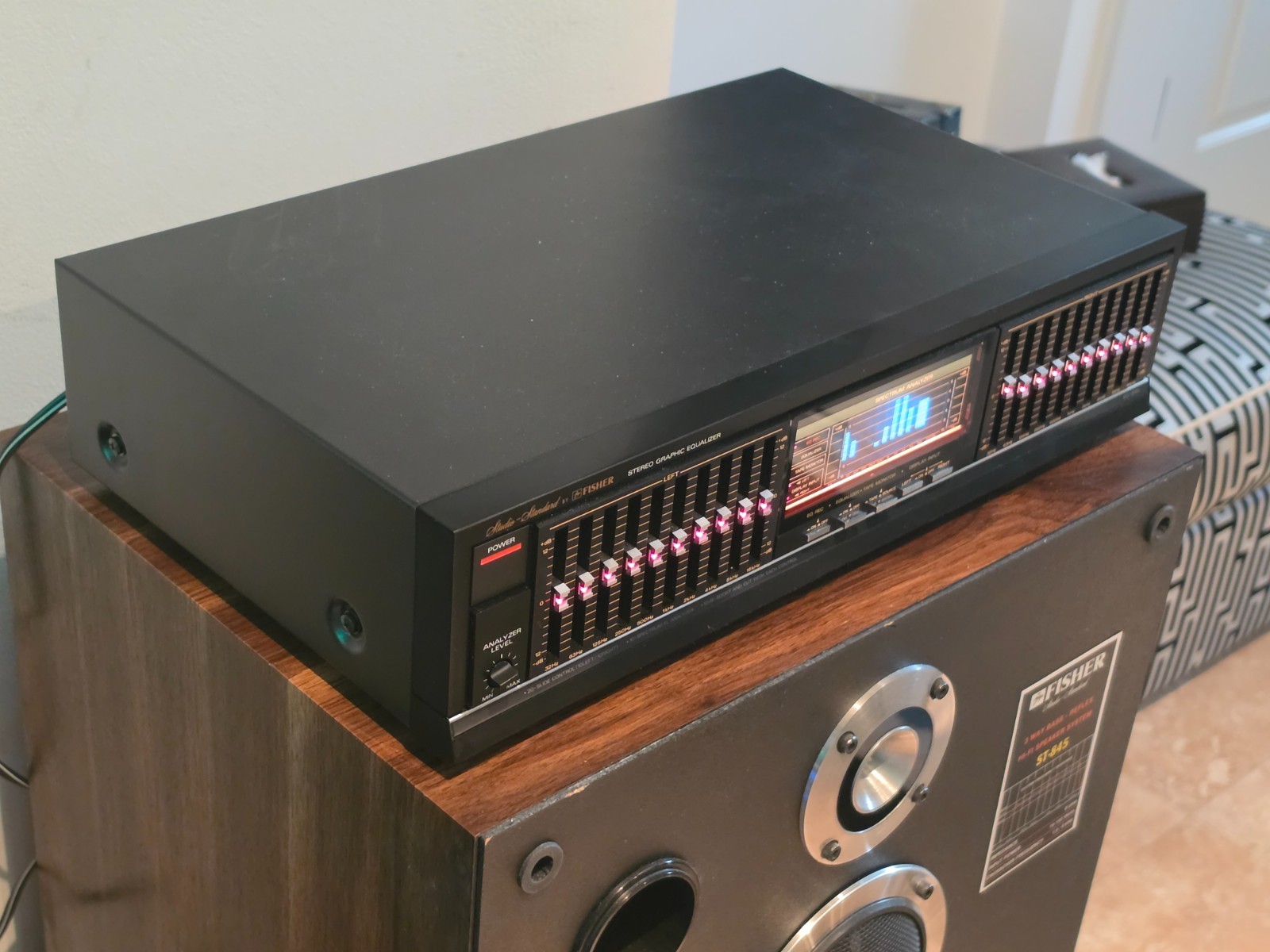

The Fisher Studio Standard EQ-890 is a stereo graphic equalizer and spectrum analyzer with analog stereo L/R RCA inputs and outputs. This black, 2-channel unit is listed as open box and includes the original factory box and insert packaging, and the description notes a clean faceplate and smooth sliders. It fits naturally into a vintage audio system where you want both equalization and a visual spectrum display from the same panel. The limitation is that it is a line-level analog component: it is designed for stereo RCA audio signals, not RF or digital test signals, so it should stay in the audio rack rather than on a measurement bench.
Recommendation by Use Case
For FM broadcast band congestion mapping and logging of RDS, pilot, and audio levels, choose the Deva Broadcast Band Scanner 2. For a rack-mounted audio spectrum visualizer with XLR and RCA inputs, choose the BDS PP-131. For an electronics workbench where you need an oscilloscope, signal generator, and spectrum analyzer in one unit, choose the FNIRSI DPOS350P. For a vintage stereo system that needs equalization and a spectrum display, choose the Fisher EQ-890.
