Choosing among test leads, probes, and fixtures isn't a matter of picking the most expensive or the one with the longest feature list. These tools are built for very different jobs, and the right buy depends on what you are repairing or testing. One is a programmable electronic load that can stress power supplies and batteries; another is a chip recovery fixture that holds a board while you work on damaged data lines; and a third is a diode test adapter with banana plugs for bench and vintage lab use. The price spread here is substantial, with the lowest option 63% below the highest, so the decision should start with the test you need to perform.
Quick Take
If you regularly test power supplies, chargers, batteries, LED drivers, or lithium packs, the 400W Electronic Load Tester is the option that covers constant voltage, constant current, constant resistance, and constant power modes. If your main task is chip recovery after soldering flying wires, the lower-priced Data Recovery Fixture comes with 10 probes and handles the same board-holder job as the other recovery fixture in this group. If you need a dedicated diode test adapter for a Tektronix bench setup, the Tektronix Diode Test Fixture Adapter 013-072 offers banana plug connectivity and a vintage lab design.
Price Comparison
| Product | Listed Price | Price Bar |
|---|---|---|
| 400W Electronic Load Tester 0-150V 0-40A Single Channel Programmable | USD 177.47 | |
| Tektronix Diode Test Fixture Adapter 013-072 Electronic Test Accessory Vintage | USD 89.99 | |
| Data Recovery Fixture Chip Recovery Test Fixture Electronic Test Tool w 10 Probe | USD 69.99 | |
| Data Recovery Fixture Chip Recovery Test Fixture Electronic Test Tool & 10 Probe | USD 66.49 |
The price bars show the relative spread: the two recovery fixtures sit at the same level, the diode adapter sits above them, and the electronic load tester sits at the top of the range.
Decision Matrix
- Choose the 400W Electronic Load Tester 0-150V 0-40A Single Channel Programmable when you need programmable load testing for power supplies, chargers, batteries, and LED drivers.
- Choose the Tektronix Diode Test Fixture Adapter 013-072 Electronic Test Accessory Vintage when you need a banana-plug diode test adapter for Tektronix gear or vintage instrument work.
- Choose the Data Recovery Fixture Chip Recovery Test Fixture Electronic Test Tool & 10 Probe when you want the chip recovery board holder at the lowest listed price.
- Choose the Data Recovery Fixture Chip Recovery Test Fixture Electronic Test Tool w 10 Probe when you want the same recovery fixture with a UPC identifier for parts tracking.

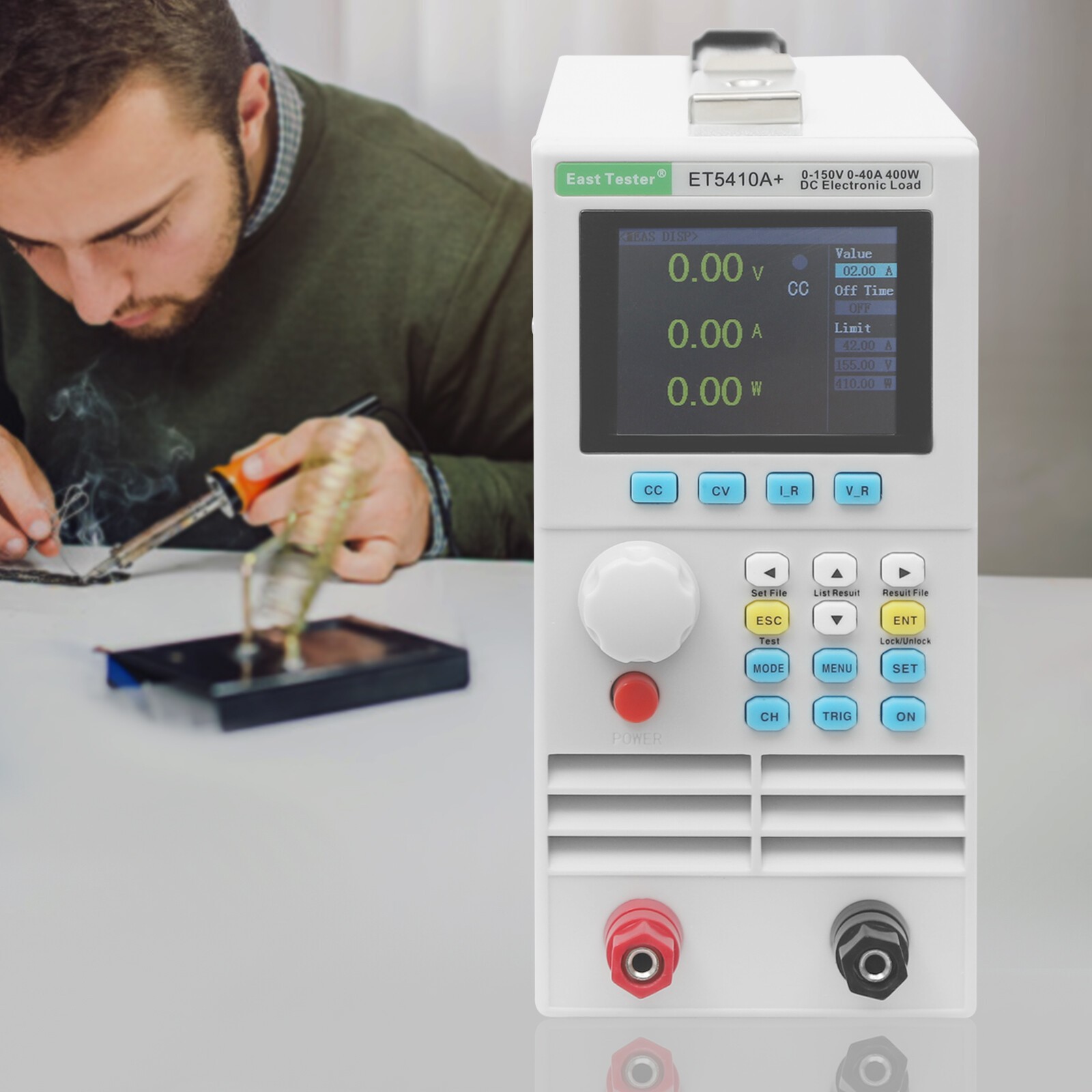

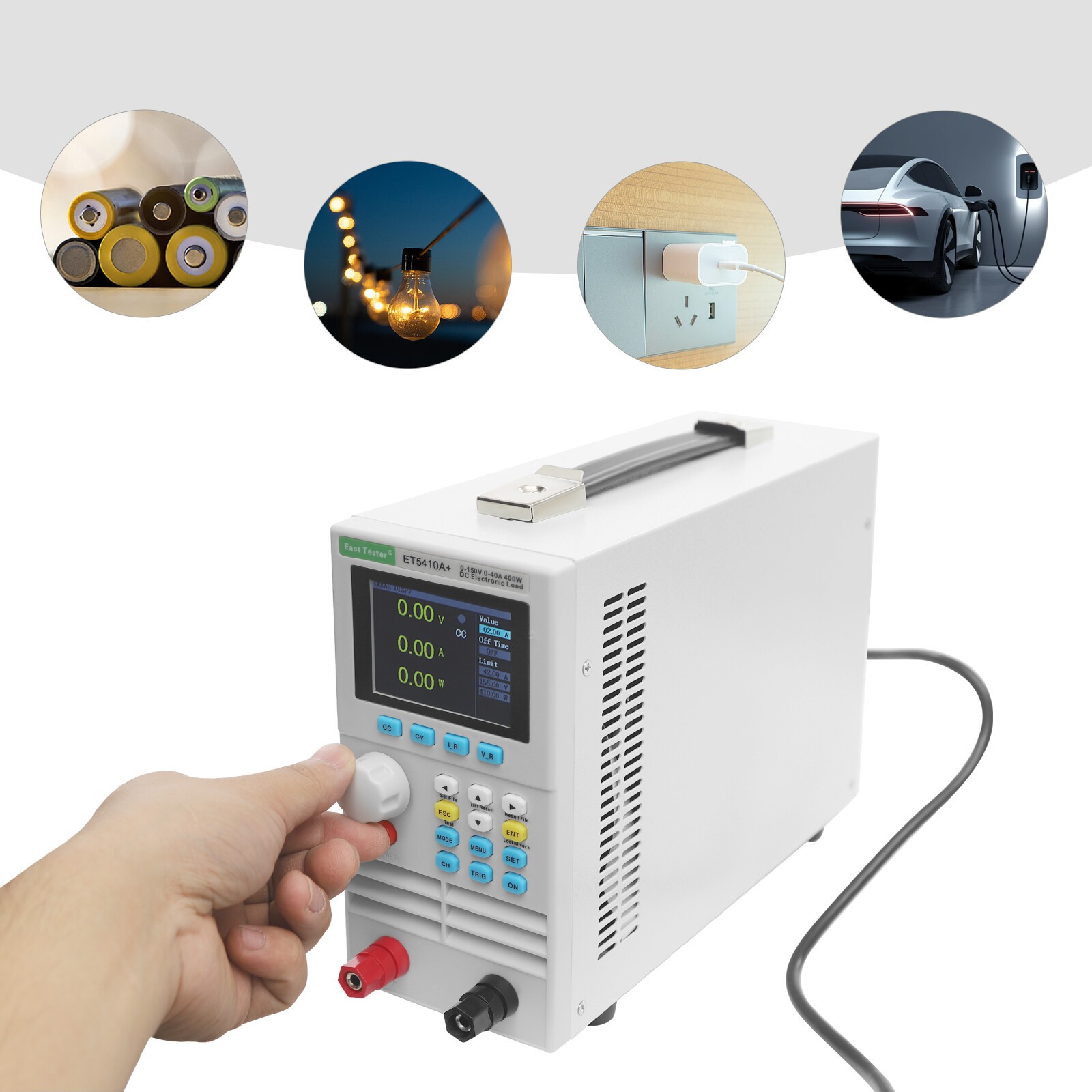

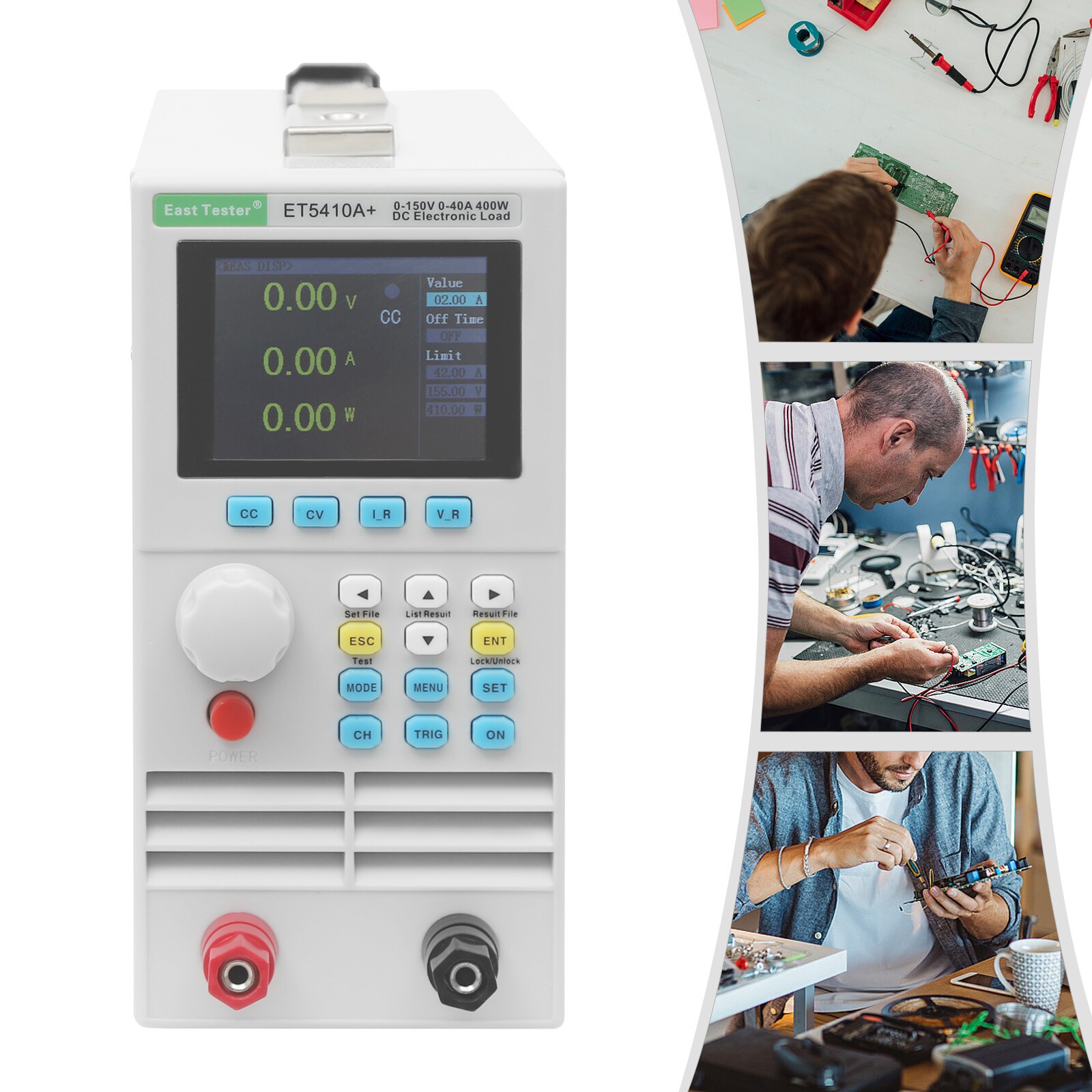

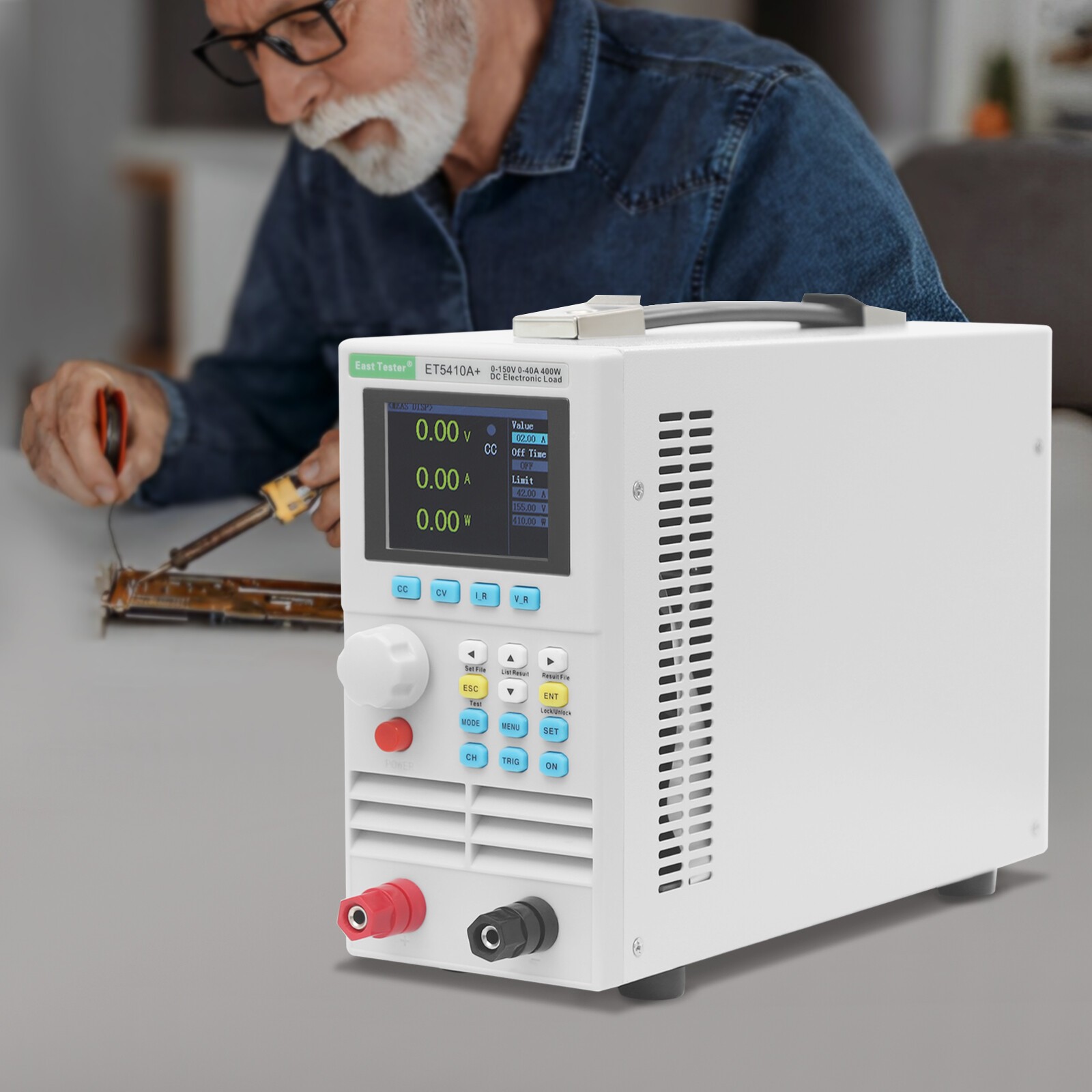

400W Electronic Load Tester 0-150V 0-40A Single Channel Programmable
This is the tool to pick when your bench work revolves around power delivery rather than board-level probing. It supports constant voltage, constant current, constant resistance, and constant power modes, and it adds dynamic testing with CC/CV timing in the 50ms to 60s range. That makes it a good match for testing chargers, switching power supplies, LED drivers, lithium batteries, and mobile power packs. The catch is the $177.47 price, which puts it well above the other three options here. It is also a programmable load tester rather than a fixture, so it is not built to hold a chip or adapt a diode for measurement.
Data Recovery Fixture Chip Recovery Test Fixture Electronic Test Tool w 10 Probe
For data recovery work after soldering flying wires, this fixture holds a circuit board in place while you adjust the probe position forward, backward, up, and down. The board holder measures 151 x 135 mm, and the package includes ten stainless steel probes with 0.8 mm diameter and 135 mm length. It carries a UPC identifier, which can be handy if you track parts by code. At $69.99, it sits $3.50 above the other recovery fixture in this group. The extra money buys the identifier rather than a larger board or more probes, since the board dimensions and ten-probe package match the lower-priced version.
Data Recovery Fixture Chip Recovery Test Fixture Electronic Test Tool & 10 Probe
This is the least expensive item in the group at $66.49. It offers the same board holder dimensions and the same ten-probe package as the $69.99 recovery fixture, so if your goal is simply to get a chip recovery fixture on the bench for the smallest outlay, this version makes that easy. The probe assembly can be moved forward and backward, up and down, and the stainless steel needles are 0.8 mm in diameter and 135 mm long. The limitation is scope: it is a board holder for recovery work, not a programmable load tester or a diode adapter, so it will not cover those other test jobs.
Tektronix Diode Test Fixture Adapter 013-072 Electronic Test Accessory Vintage
If your bench already runs Tektronix gear, this adapter fits that setup, with E and C terminal markings and two banana plug outputs plus a center jack. It has a plastic housing with metal banana plug terminals and a black body with beige/gray connector housings, and the Tektronix name appears on the fixture. The $89.99 price places it between the recovery fixtures and the load tester. It is also a purpose-built diode test adapter, so it is not designed for chip recovery or power-load testing. For diode checks on older Tektronix instruments, this adapter provides a banana-plug connection straight from the fixture terminals.
Final Recommendation by Use Case
- Power-supply, battery, and LED driver testing: 400W Electronic Load Tester 0-150V 0-40A Single Channel Programmable
- Chip recovery after soldering flying wires, lowest price: Data Recovery Fixture Chip Recovery Test Fixture Electronic Test Tool & 10 Probe
- Chip recovery with a UPC identifier for parts tracking: Data Recovery Fixture Chip Recovery Test Fixture Electronic Test Tool w 10 Probe
- Diode tests on Tektronix gear: Tektronix Diode Test Fixture Adapter 013-072 Electronic Test Accessory Vintage
